Vehicle Exploded View - PIAGGIO MP3 300 ie E4 LT BUSINESS-SPORT ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

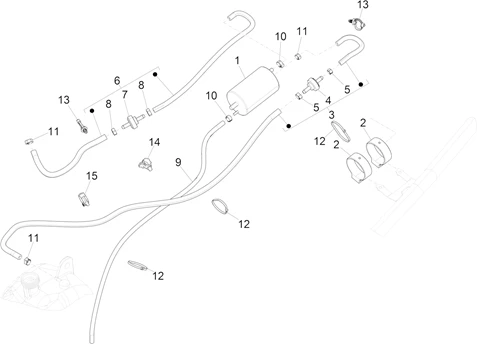

Châssis - parties plastiques - carrosseries : 02.61 SYSTÈME ANTI-ÉVAPORATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/773/MP3_300_ie_E4_LT_BUSINESS-SPORT_ABS_2016_02.61.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/0/img/140010.jpg)
1 |
1B003695 - CANISTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/4/img/140014.jpg)
2 |
1B003721 - PLAQUETTE More informationQuantity required : 2 |
||||||
3 |
1B004117 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/4/img/71234.jpg)
4 |
AP8104614 - VALVOLA DI VENTIL.2VIE GR./NER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.jpg)
5 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
1B004118 - TUYAU RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/0/5/7/img/85057.jpg)
7 |
624384 - SOUPAPE More informationQuantity required : 1 |
||||||
|
8 |
CM001914 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
9 |
FUEL HOSE (5X10) L1060 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM001432 More informationQuantity required : 2 |
||||||
|
10 |
CM001914 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
11 |
CM001901 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/9/3/img/127593.jpg)
13 |
1D001143 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
14 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
15 |
CM006903 - RESSORT More informationQuantity required : 1 |
