Vehicle Exploded View - PIAGGIO MP3 300 ie E4 LT BUSINESS-SPORT ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

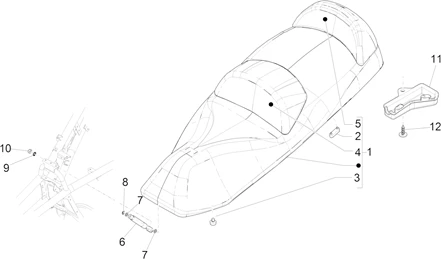

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/773/MP3_300_ie_E4_LT_BUSINESS-SPORT_ABS_2016_02.39.PNG)
1 |
1B003848000C4 - SELLE CPL More informationQuantity required : 1 |
||||||
|
1 |
1B003848000C3 - SELLE CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
2 |
296456 - TAMPON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
3 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/4/5/img/109245.jpg)
4 |
2B000791000C3 - DOSSERET PILOTE More informationQuantity required : 1 |
||||||
|
4 |
2B000791000C4 - DOSSERET PILOTE More informationQuantity required : 1 |
||||||
|
5 |
1B003988000C3 - DOSSIER More informationQuantity required : 1 |
||||||
|
5 |
1B003988000C4 - DOSSIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/4/2/img/91642_20251023160110.jpg)
6 |
SADDLE ACTUATOR "PIAGGIO GENUINE PART" 300-350-500 MP3 2014>, 125-350-500 X10 2012 -674301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/1/1/1/img/91111.jpg)
7 |
673412 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
8 |
005967 - CLIPS S00596700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
9 |
012540 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
10 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
|
11 |
624965 - COUVERCLE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
12 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
