Vehicle Exploded View - PIAGGIO MP3 300 ie E4 LT BUSINESS-SPORT ABS 2016
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

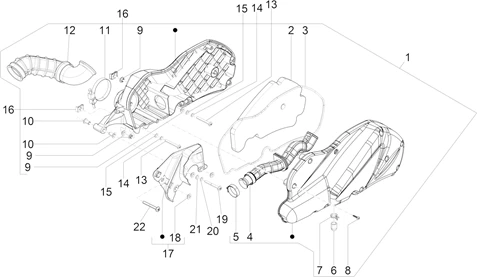

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/773/MP3_300_ie_E4_LT_BUSINESS-SPORT_ABS_2016_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/6/9/img/146269.jpg)
1 |
1A008208 - BOITIER DU FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
2 |
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO -8292580P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/3/img/68833.jpg)
3 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/6/img/68856.jpg)
4 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -829543- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
5 |
CM001926 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/1/img/68701.jpg)
6 |
CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/5/img/72895.jpg)
7 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
8 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/8/img/68888.jpg)
9 |
830056 - BAGUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/9/img/68889.jpg)
10 |
830057 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
11 |
260918 - BRIDE More informationQuantity required : 1 |
||||||
12 |
B014736 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/9/img/66569.jpg)
13 |
478895 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
14 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
15 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
17 |
AIR INTAKE PROTECTION "PIAGGIO GENUINE PART" GILERA RUNNER 125 2005>2016/ PIAGGIO BEVERLY 125-300 2010>2017, MP3 300 2016>2018 -657226- More informationQuantity required : 1 |
||||||
|
18 |
830056 - BAGUE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/9/0/img/96290.jpg)
19 |
CM179306 - VIS More informationQuantity required : 1 |
||||||
|
19 |
CM179306 - VIS More informationQuantity required : 1 |
||||||
|
20 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
22 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
