Vehicle Exploded View - APRILIA MOJITO 50 Mojito Custom 50 2T (eng.Aprilia) 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

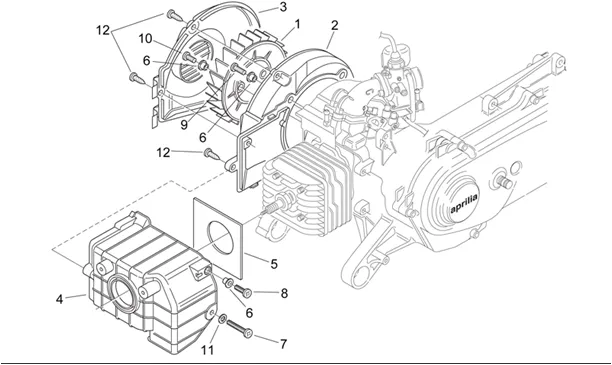

Moteur : 29.32 GROUPE REFROIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/259/Mojito_Custom_50_2T_(eng.Aprilia)_99-04_29.32.PNG)
1 |
AP3UBA000076 - VENTILATEUR EN PLASTIQUE More informationQuantity required : 1 |
||||||
|
2 |
AP3UDA000077-BASE TRANSPORT. VENT. More informationQuantity required : 1 |
||||||
|
3 |
AP3UCA000078-DUCT VENTILATEUR More informationQuantity required : 1 |
||||||
|
4 |
AP3UCA000079 - COIFFE CONVOYEUR CYLINDRE More informationQuantity required : 1 |
||||||
|
5 |
Panneau insonorisant |
||||||
|
6 |
AP3UAN000061 - "DOUILLE EN ""T""" More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
7 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 1 |
||||||
|
8 |
AP4ADN000014-SCREW More informationQuantity required : 1 |
||||||
|
9 |
AP4ADN000015 - VIS More informationQuantity required : 4 |
||||||
|
10 |
AP2AVN000112 - VIS+ROND.EPINGLE A NOURRICE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
11 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 1 |
||||||
|
12 |
Vis |
