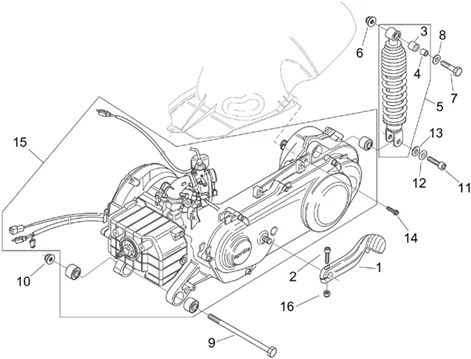

Chassis : 28.22 MOTEUR - SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/259/Mojito_Custom_50_2T_(eng.Aprilia)_99-04_28.22.PNG)
1 |
AP8235089 - LEVIER ALLUMAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
2 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 1 |
||||||
|
3 |
AP8144259 - CAOUTCHOUC; More informationQuantity required : 1 |
||||||
|
4 |
AP8221304-BUSH More informationQuantity required : 1 |
||||||
|
5 |
AP8223058 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
|
5 |
AP8203930 - AMORTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
7 |
AP8150227 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
8 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/6/img/66106.jpg)
9 |
SPINDLE/SCREW ARM DE SUSPENSION (10X202) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-271807 More informationQuantity required : 1 |
||||||
|
10 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
11 |
AP8150196-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
12 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 1 |
||||||
|
13 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
14 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
