Vehicle Exploded View - APRILIA MOJITO 50 Mojito Custom 50 2T (eng.Aprilia) 99-04 APRILIA

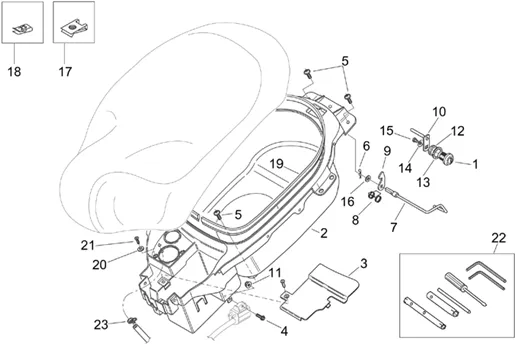

Chassis : 28.11 COMPART.P-CASQUE
Compart.p-casque
Search
LOCK DE UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO APRILIA 50-125 MOJITO-AP8202169

1
P2R reference P2R reference 55442
Maker reference Maker reference AP8202169

LOCK DE UNDERSEAT COMPARTMENT A CASQUE OEM PIAGGIO APRILIA 50-125 MOJITO-AP8202169

More information

Quantity required : 1

AP8248160 - COMPART.P-CASQUE;

2
P2R reference P2R reference 58526
Maker reference Maker reference AP8248160

AP8248160-COMPART. P-CASQUE

More information

Quantity required : 1

AP8248161 - COUVERCLE BATTERIE;

3
P2R reference P2R reference 58527
Maker reference Maker reference AP8248161

AP8248161 - COUVERCLE BATTERIE;

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

4
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 1

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

5
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 4

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

6
P2R reference P2R reference 72138
Maker reference Maker reference AP8201643

GOUPILLE OEM PIAGGIO COMMON A LA RANGE/SPINDLE HATCH FUEL DERBI 50 SENDA 2018 >-AP8201643

More information

Quantity required : 1

AP8221294 - RENVOI FERMETURE SELLE

7
P2R reference P2R reference 57047
Maker reference Maker reference AP8221294

AP8221294-RENVOI LATCH SEAT

More information

Quantity required : 1

AP8221295 - RESSORT FERMETURE SELLE

8
P2R reference P2R reference 57048
Maker reference Maker reference AP8221295

AP8221295-SPRING LATCH SEAT

More information

Quantity required : 1

AP8221293 - CROCHET FERMETURE SELLE

9
P2R reference P2R reference 57046
Maker reference Maker reference AP8221293

AP8221293 - CROCHET FERMETURE SELLE

More information

Quantity required : 1

AP8202167 - LEVIER FERMETURE SELLE

10
P2R reference P2R reference 55440
Maker reference Maker reference AP8202167

AP8202167 - LEVIER FERMETURE SELLE

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

11
P2R reference P2R reference 71882
Maker reference Maker reference AP8150430

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430

More information

Quantity required : 1

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

12
P2R reference P2R reference 50968
Maker reference Maker reference AP8152194

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

More information

Quantity required : 1

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

13
P2R reference P2R reference 57054
Maker reference Maker reference AP8221312

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

More information

Quantity required : 1

WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748

14
P2R reference P2R reference 55385
Maker reference Maker reference AP8201748

WASHER EVENTAIL MOUNTING CROCHET DE LOCK OEM PIAGGIO APRILIA ATLANTIC 125-250-500 2003 > 2012, RS 125 2011 > 2017, RS 50 2006 > 2016, SR 50 1993 > 2014-AP8201748

More information

Quantity required : 1

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749

15
P2R reference P2R reference 72141
Maker reference Maker reference AP8201749

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-AP8201749

More information

Quantity required : 1

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

16
P2R reference P2R reference 71809
Maker reference Maker reference AP8150017

WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017

More information

Quantity required : 1

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

17
P2R reference P2R reference 71177
Maker reference Maker reference AP8102381

NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381

More information

Quantity required : 2

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

18
P2R reference P2R reference 72157
Maker reference Maker reference AP8202449

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449

More information

Quantity required : 1

HELMET COMPARTMENT GASKET "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR, MOJITO, AMICO -890507

19
P2R reference P2R reference 41724
Maker reference Maker reference 890507

HELMET COMPARTMENT GASKET "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR, MOJITO, AMICO -890507

More information

Quantity required : 1

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

20
P2R reference P2R reference 71806
Maker reference Maker reference AP8150013

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

More information

Quantity required : 2

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

21
P2R reference P2R reference 69697
Maker reference Maker reference 855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

More information

Quantity required : 2

852232 - TOOLS KIT ROLL

22
P2R reference P2R reference 39496
Maker reference Maker reference 852232

852232-TOOLS KIT ROLL

More information

Quantity required : 1

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

23
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

More information

Quantity required : 1
