Vehicle Exploded View - APRILIA MOJITO 50 Mojito Custom 50 2T (eng.Aprilia) 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

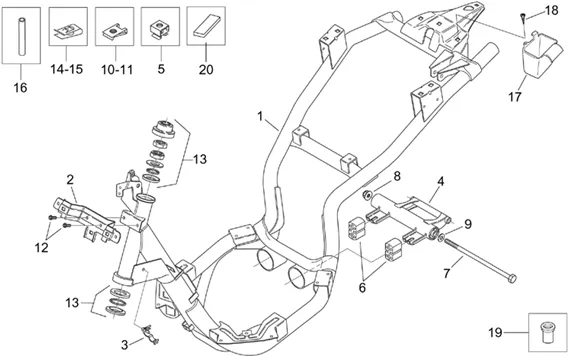

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/259/Mojito_Custom_50_2T_(eng.Aprilia)_99-04_28.01.PNG)
1 |
AP8235129 - CHASSIS AVEC CATAPHORESE More informationQuantity required : 1 |
||||||
|
2 |
AP8234157 - SUPPORT CARROSSERIE SUP.; More informationQuantity required : 1 |
||||||
|
3 |
AP8220269-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
4 |
AP8235060-BIELLETTE MOUNTING ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
5 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/7/6/img/56876.jpg)
6 |
BUFFER DE CALAGE STAND OEM PIAGGIO 50 SR APRILIA 1993 >-AP8220399 More informationQuantity required : 2 |
||||||
|
7 |
AP8221281 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
9 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
13 |
AP8203923 - SERIE DIRECTION COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
14 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 8 |
||||||
|
15 |
AP8201764-CLIP FOR SCREW TARAUD More informationQuantity required : 2 |
||||||
|
16 |
AP8201772-SHEATH More informationQuantity required : 1 |
||||||
|
17 |
AP8249095 - PROTECTION SERRURE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
|
19 |
AP8201457-RIVET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/8/img/41728.jpg)
20 |
GASKET EPONGE ADHESIVE 15X8 OEM PIAGGIO COMMON A LA RANGE-890512 More informationQuantity required : 1 |
