Vehicle Exploded View - APRILIA MOJITO 50 Mojito Custom 50 2T (eng.Aprilia) 99-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

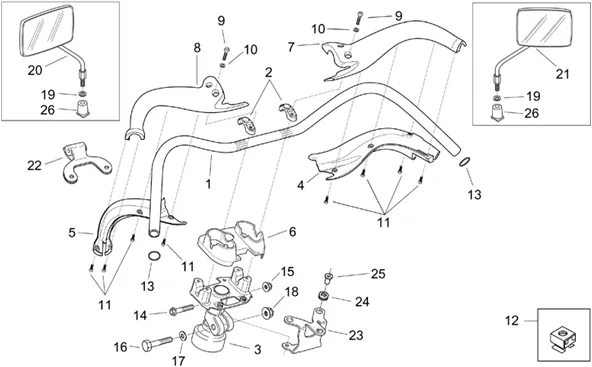

Chassis : 28.15 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/259/Mojito_Custom_50_2T_(eng.Aprilia)_99-04_28.15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/9/7/img/56697.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 50-125 MOJITO -AP8218490 More informationQuantity required : 1 |
||||||
2 |
AP8218489-CAVALIER SUP. More informationQuantity required : 2 |
||||||
|
3 |
AP8218491-BRACKET INF. More informationQuantity required : 1 |
||||||
|
4 |
AP8118634 - RIVESTIMENTO MANUBRIO INF.DX More informationQuantity required : 1 |
||||||
|
4 |
AP8218484-REV? T. HANDLEBAR INF. D. More informationQuantity required : 1 |
||||||
|
5 |
AP8118635 - RIVESTIMENTO MANUBRIO INF.SX More informationQuantity required : 1 |
||||||
|
5 |
AP8218485-REV? T. HANDLEBAR INF. G. More informationQuantity required : 1 |
||||||
|
6 |
Revêt. guidon cent. |
||||||
|
6 |
AP8218486-REV? T. HANDLEBAR CENT. More informationQuantity required : 1 |
||||||
|
7 |
Revêt. guidon sup.d. |
||||||
|
7 |
AP8202267 - KIT REVETEMENT GUIDON More informationQuantity required : 1 |
||||||
|
8 |
AP8202267 - KIT REVETEMENT GUIDON More informationQuantity required : 1 |
||||||
|
8 |
AP8249878 - REV?T. GUIDON SUP.G. More informationQuantity required : 1 |
||||||
|
9 |
AP8150286-SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
10 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
11 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
11 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
12 |
NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213 More informationQuantity required : 2 |
||||||
|
13 |
AP8203976-O-RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
14 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
16 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
17 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
18 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
19 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 2 |
||||||
|
20 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50-125 MOJITO CUSTOM -AP8202170- More informationQuantity required : 1 |
||||||
|
21 |
RIGHT MIRROR OEM PIAGGIO APRILIA 50-125 MOJITO CUSTOM-AP8202166 More informationQuantity required : 1 |
||||||
|
22 |
AP8146794-STAFFA BRACKET FANALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/7/5/img/58075.jpg)
22 |
FLANGE BRACKET DE HEADLAMP OEM PIAGGIO 50-125 MOJITO-AP8234175 More informationQuantity required : 1 |
||||||
|
23 |
AP8234174 - BRIDE FIX. INSTR.; More informationQuantity required : 1 |
||||||
|
24 |
AP8112599 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
25 |
AP8121790-" BUSH EN " " T " " " More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/8/5/img/49685.jpg)
26 |
RUBBER DE MIRROR OEM APRILIA 50-125 MOJITO 1999 > 2010-AP8144296 More informationQuantity required : 2 |
