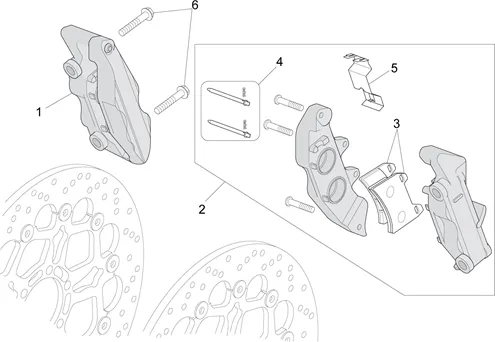

Système frein abs : 06.02 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/922/MGX_21_FLYING_FORTRESS_1400_ABS_E4_2016_(EMEA)_06.02.png)
1 |
2B002690-PINCE BRAKE More informationQuantity required : 1 |
||||||
|
2 |
2B002689-PINCE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/6/img/71656_20260511112716.jpg)
3 |
BRAKE PADS FRONT BREMBO OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1200 NORGE, STELVIO, V9/APRILIA 750-1200 DORSODURO, 650 PEGASO, 1000 TUONO V2, 1000 TUONO V4 (PAIRE)-AP813614 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
4 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
5 |
GU01659131-MOLLA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/3/img/71983.jpg)
6 |
SCREW FLANGE TH (10X55) OEM PIAGGIO COMMON A LA RANGE-AP8152414 More informationQuantity required : 4 |
