Vehicle Exploded View - MOTO-GUZZI MGX-21 1400 MGX 21 FLYING FORTRESS 1400 ABS E4 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

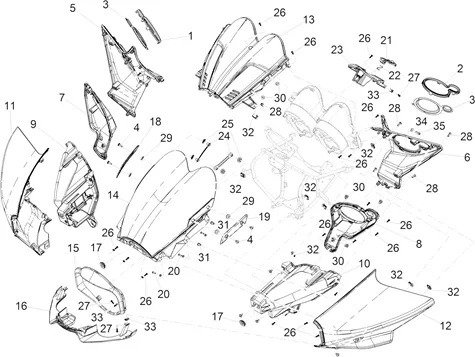

Carrosserie : 02.04 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/922/MGX_21_FLYING_FORTRESS_1400_ABS_E4_2016_(EMEA)_02.04.png)
1 |
2B002658-SURROUND More informationQuantity required : 1 |
||||||
|
2 |
2B002657-SURROUND More informationQuantity required : 1 |
||||||
|
3 |
2B002659 - GRILLE More informationQuantity required : 2 |
||||||
|
4 |
976614-SCREW TCCCE IX M5X15 More informationQuantity required : 4 |
||||||
|
5 |
2B002652000YN5-PLANCHE More informationQuantity required : 1 |
||||||
|
6 |
2B002651000YN5-PLANCHE More informationQuantity required : 1 |
||||||
|
7 |
2B002653-TRESORERIE DE HAUT-PARLEUR More informationQuantity required : 1 |
||||||
|
8 |
2B002654-TRESORERIE DE HAUT-PARLEUR More informationQuantity required : 1 |
||||||
|
9 |
2B002655-BRACKET More informationQuantity required : 1 |
||||||
|
10 |
2B002656-BRACKET More informationQuantity required : 1 |
||||||
|
11 |
2B002643000YN4 - TABLIER D. More informationQuantity required : 1 |
||||||
|
12 |
2B002644000YN4 - TABLIER G. More informationQuantity required : 1 |
||||||
|
13 |
2B002649000YN5-COVER More informationQuantity required : 1 |
||||||
|
14 |
2B002645-COUPOLE More informationQuantity required : 1 |
||||||
|
15 |
2B002647000YN4-SURROUND HEADLAMP More informationQuantity required : 1 |
||||||
|
16 |
2B002648000YN4-SPOILER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
17 |
BUFFER/SILENCBLOC DE FAIRING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1B000888 More informationQuantity required : 3 |
||||||
|
18 |
2B003356-COVER More informationQuantity required : 1 |
||||||
|
18 |
2B003356000YN4-COVER More informationQuantity required : 1 |
||||||
|
19 |
2B003355-COVER More informationQuantity required : 1 |
||||||
|
19 |
2B003355000YN4-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/3/img/71893.jpg)
20 |
SCREW BTR HEAD BOMBEE (4X16) OEM PIAGGIO COMMON A LA RANGE-AP8150493 More informationQuantity required : 6 |
||||||
|
21 |
2B002661000YN5-LID More informationQuantity required : 1 |
||||||
|
22 |
2B002733-SPRING More informationQuantity required : 1 |
||||||
|
23 |
2B002650000YN5-PLANCHE More informationQuantity required : 1 |
||||||
|
24 |
2B003352-PLATE More informationQuantity required : 2 |
||||||
|
25 |
2B003353-RUBBER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
26 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/9/img/71869.jpg)
27 |
SCREW PARKER (4, 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150362 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
28 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 0 |
||||||
|
29 |
2B003354-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
30 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/0/img/71770.jpg)
31 |
RUBBER WITH INSERT (M4) OEM PIAGGIO COMMON A LA RANGE-AP8144564 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
32 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
33 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
34 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/9/img/133059.jpg)
35 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-GU98370621 More informationQuantity required : 2 |
