Vehicle Exploded View - MOTO-GUZZI MGX-21 1400 MGX 21 FLYING FORTRESS 1400 ABS E4 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

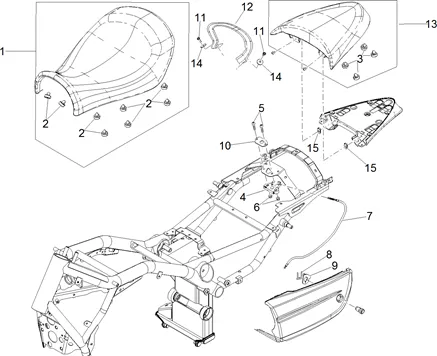

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/922/MGX_21_FLYING_FORTRESS_1400_ABS_E4_2016_(EMEA)_02.12.png)
1 |
2B002675000C1-SEAT PILOTE More informationQuantity required : 1 |
||||||
|
2 |
B064023-BUFFER SEAT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/9/2/img/140892.jpg)
3 |
BUFFER RUBBER DE SEAT OEM APRILIA RSV4 TUONO E5-2B002692 More informationQuantity required : 4 |
||||||
|
4 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
7 |
B063439-CABLE SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
8 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
9 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
|
10 |
886820-PIASTRINA CHIUSURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.jpg)
11 |
SCREW FLANGE TH (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152274 More informationQuantity required : 2 |
||||||
|
12 |
2B002696000C1-BELT More informationQuantity required : 1 |
||||||
|
13 |
2B002677000C1-SEAT PASSENGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/3/img/50823.jpg)
14 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150016 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
