Vehicle Exploded View - MOTO-GUZZI MGX-21 1400 MGX 21 FLYING FORTRESS 1400 ABS E4 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

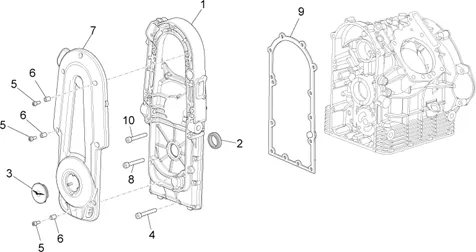

Moteur : 03.04 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/922/MGX_21_FLYING_FORTRESS_1400_ABS_E4_2016_(EMEA)_03.04.png)
1 |
976631-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/0/img/132200.jpg)
2 |
OIL SEAL (22X35X7) DE CASING TIMING MOTO-GUZZI 1400 CALIFORNIA, 850-1200 BREVA, STELVIO, NORGE-GU90412237 More informationQuantity required : 1 |
||||||
|
3 |
GU05002130-CAP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
4 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98620335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
5 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 6 |
||||||
|
6 |
GU91120606-BUSH 6, 8X8, 8X5, 8 More informationQuantity required : 6 |
||||||
|
7 |
GU05001630-COVER ALTERNATEUR GREY More informationQuantity required : 1 |
||||||
|
8 |
GU98680330-SCREW TCEI M6X30 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/4/img/99854.jpg)
9 |
GASKET COVER DE TIMING ORINE MOTO GUZZI 1200-1400 AUDACE, CALIFORNIA, GRISO, NORGE, STELVIO-976478 More informationQuantity required : 1 |
||||||
|
10 |
GU98620455-SCREW More informationQuantity required : 4 |
