Vehicle Exploded View - MOTO-GUZZI MGX-21 1400 MGX 21 FLYING FORTRESS 1400 ABS E4 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

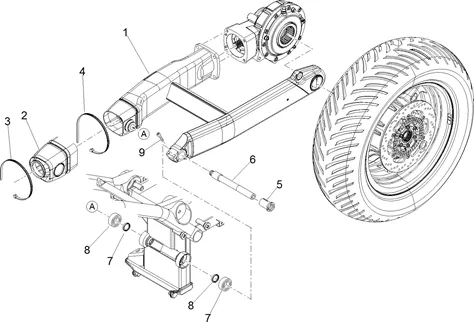

Chassis : 01.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/922/MGX_21_FLYING_FORTRESS_1400_ABS_E4_2016_(EMEA)_01.05.png)
1 |
8869594-FORK AR. More informationQuantity required : 1 |
||||||
|
2 |
887519-SOFFIETTO IN GOMMA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
3 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 1 |
||||||
|
4 |
B063759-FASCETTA 4. 5X430 More informationQuantity required : 1 |
||||||
|
5 |
GU05547130-BUSH More informationQuantity required : 1 |
||||||
|
6 |
GU05547030-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/6/img/132426.jpg)
7 |
BEARING A ROULEAUX (25X47X17) PIVOT DE CASING TRANSMISSION OEM PIAGGIO MOTO-GUZZI-GU92249224 More informationQuantity required : 2 |
||||||
|
8 |
GU05547930-BUSH D'ETANCHEITE More informationQuantity required : 2 |
||||||
|
9 |
GU98682325-SCREW TCEI M6X25 More informationQuantity required : 2 |
