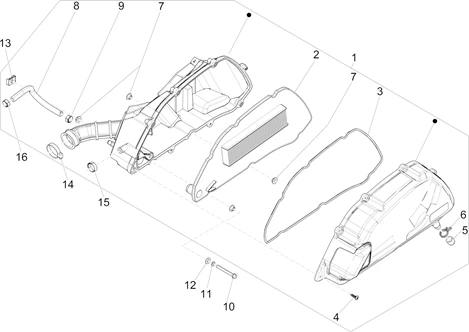

Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (EMEA) PIAGGIO

Moteur : 01.45 FILTRE À AIR
Filtre à air
Search
AIR FILTER HOUSING "PIAGGIO GENUINE PART" -1A014933-

1
P2R reference P2R reference 146256
Maker reference Maker reference 1A007648

AIR FILTER HOUSING "PIAGGIO GENUINE PART" -1A014933

More information

Quantity required : 1

AIR FILTER "PIAGGIO GENUINE PART" 125 MEDLEY -1A007267

2
P2R reference P2R reference 139663
Maker reference Maker reference 1A007267

AIR FILTER "PIAGGIO GENUINE PART" 125 MEDLEY -1A007267

More information

Quantity required : 1

1A003321 - JOINT

3
P2R reference P2R reference 139525
Maker reference Maker reference 1A003321

1A003321 - JOINT

More information

Quantity required : 1

1A001106 - VIS

4
P2R reference P2R reference 75340
Maker reference Maker reference 1A001106

1A001106 - VIS

More information

Quantity required : 10

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958

4
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958

More information

Quantity required : 10

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831

5
P2R reference P2R reference 68701
Maker reference Maker reference 827831

CAP - FOR AIRBOX "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER 4 STROKE -827831

More information

Quantity required : 2

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910

6
P2R reference P2R reference 72895
Maker reference Maker reference CM002910

COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM002910

More information

Quantity required : 1

1A006247 - MOYEU

7
P2R reference P2R reference 139615
Maker reference Maker reference 1A006247

1A006247 - MOYEU

More information

Quantity required : 4

1A003439 - TUYAU ASPIRATION.

8
P2R reference P2R reference 139529
Maker reference Maker reference 1A003439

1A003439 - TUYAU ASPIRATION.

More information

Quantity required : 1

COLLIER (12-22mm) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

9
P2R reference P2R reference 72874
Maker reference Maker reference CM001913

COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

More information

Quantity required : 1

1A006274 - VIS

10
P2R reference P2R reference 139616
Maker reference Maker reference 1A006274

1A006274 - VIS

More information

Quantity required : 2

012533 - RONDELLE

11
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

012533 - RONDELLE

More information

Quantity required : 2

006125 - RONDELLE S00612500

12
P2R reference P2R reference 63803
Maker reference Maker reference 0061255

006125 - RONDELLE S00612500

More information

Quantity required : 2

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

13
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

More information

Quantity required : 2

1A000833 - COLLIER

14
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

1A000833 - COLLIER

More information

Quantity required : 1

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

15
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

More information

Quantity required : 1

COLLIER (12-22mm) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

16
P2R reference P2R reference 72874
Maker reference Maker reference CM001913

COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

More information

Quantity required : 1
