Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

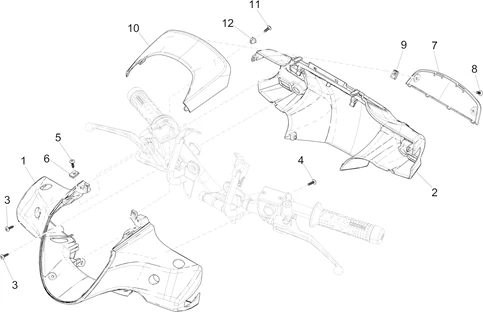

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/771/Medley_125_4T_ie_ABS_2016_(EMEA)_03.01.PNG)
1 |
1B002077 - COUVRE POIGNEE BRUT More informationQuantity required : 1 |
||||||
|
1 |
1B002077000BT - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
1 |
1B002077000DE - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
1 |
1B002077000DU - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
1 |
1B002077000HI - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
1 |
1B002077000ND - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
1 |
1B002077000S5 - CACHE DIRECTION AV. More informationQuantity required : 1 |
||||||
|
2 |
1B002078000MH - CACHE DIRECTION More informationQuantity required : 1 |
||||||
|
2 |
1B0020780000C - CACHE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 4 |
||||||
|
4 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
5 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409 More informationQuantity required : 2 |
||||||
|
7 |
WINDSHIELD COVER -1B0020800000C More informationQuantity required : 1 |
||||||
|
7 |
WINDSHIELD COVER -1B002080000MH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
10 |
1B002079 - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079600BT - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079000DE - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079000DU - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079000HI - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079000ND - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
10 |
1B002079000S5 - KIT PARE-BRIS More informationQuantity required : 1 |
||||||
|
11 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
12 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
