Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

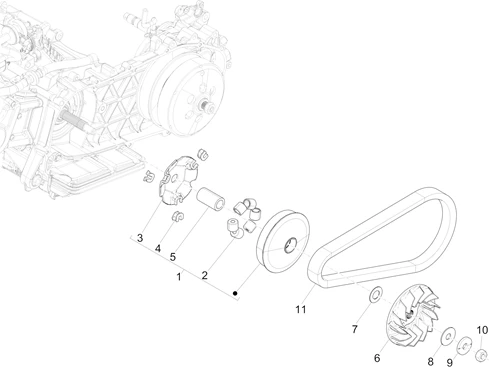

Moteur : 01.13 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/771/Medley_125_4T_ie_ABS_2016_(EMEA)_01.13.PNG)
1 |
CM257704 - ROULEAU DE LOGEMENT More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/1/9/img/207619.jpg)
2 |
GALET/ROULEAU ORIGINE PIAGGIO 125 GTS 2016>, MEDLEY 2016> (VENDU A L'UNITE) -CM308503 More informationQuantity required : 6 |
||||||
|
2 |
GALET/ROULEAU ORIGINE PIAGGIO 125 GTS 2016>, MEDLEY 2016> (VENDU A L'UNITE) -CM308503 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
3 |
VARIATOR ROLLER CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -485710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
4 |
1A015664 - PATIN More informationQuantity required : 3 |
||||||
|
4 |
1A015664 - PATIN More informationQuantity required : 3 |
||||||
|
5 |
483889 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/8/img/70638.jpg)
6 |
DRIVING HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC INJECTION -876921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/4/img/68964.jpg)
7 |
FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -831363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
8 |
840533 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
9 |
DRIVING PULLEY SPRING WASHER "PIAGGIO GENUINE PART"COMMON TO THE RANGE MAXISCOOTER 125-250-300 CC -880950 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
10 |
NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
11 |
1A011455 - COURROIE More informationQuantity required : 1 |
||||||
|
11 |
1A011455 - COURROIE More informationQuantity required : 1 |
