Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

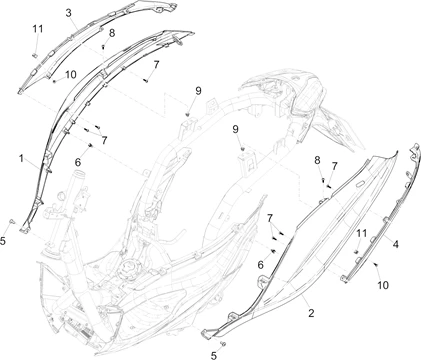

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/771/Medley_125_4T_ie_ABS_2016_(EMEA)_02.32.PNG)
1 |
1B001862 - FLANC AR DR More informationQuantity required : 1 |
|||||||||
|
1 |
1B001862000BT - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
|
1 |
1B001862000DE - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
|
1 |
1B001862000DU - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
|
1 |
1B001862000HI - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/3/4/img/139834.jpg)
1 |
1B001862000ND - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
|
1 |
1B001862000S5 - FLANC AR DRT. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702 - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702000BT - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702000DE - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702000DU - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702000HI - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/0/2/img/139802.jpg)
2 |
1B001702000ND - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
|
2 |
1B001702000S5 - FLANC AR GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/3/6/img/139836.jpg)
3 |
1B0018630000C - COUVERTURE INFERIEUR DR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/0/4/img/139804.jpg)
4 |
1B0017030000C - COUVERTURE INFERIEUR GAU. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
6 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 6 |
|||||||||
|
7 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
9 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
|||||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
All the exploded views of this vehicle
-
