Vehicle Exploded View - PIAGGIO MEDLEY 125 4T ie ABS 2016 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

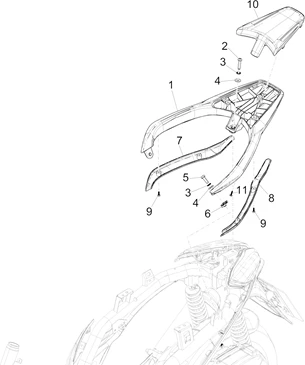

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/771/Medley_125_4T_ie_ABS_2016_(EMEA)_02.44.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/1/5/img/139815.jpg)
1 |
REAR LUGGAGE RACK "PIAGGIO GENUINE PART" 125 MEDLEY 2016> 1B001706000H4 More informationQuantity required : 1 |
||||||
1 |
1B001706000HO - PORTE PAQUET ARR. More informationQuantity required : 1 |
||||||
|
2 |
668030 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
3 |
012540 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/0/img/73670.jpg)
4 |
006032 - RONDELLE S00603200 More informationQuantity required : 3 |
||||||
|
5 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/0/8/img/139908.jpg)
7 |
1B002399 - CACHE POIGNÉE DRT. More informationQuantity required : 1 |
||||||
|
8 |
1B002398 - CACHE POIGNÉE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/8/1/7/img/139817.jpg)
10 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" 125 MELEY 2016> -1B0017070000C More informationQuantity required : 1 |
||||||
|
10 |
LUGGAGE RACK COVER "PIAGGIO GENUINE PART" 125 MEDLEY 2016> -1B001707000MH More informationQuantity required : 1 |
||||||
|
11 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 1 |
