Vehicle Exploded View - APRILIA LEONARDO 150 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

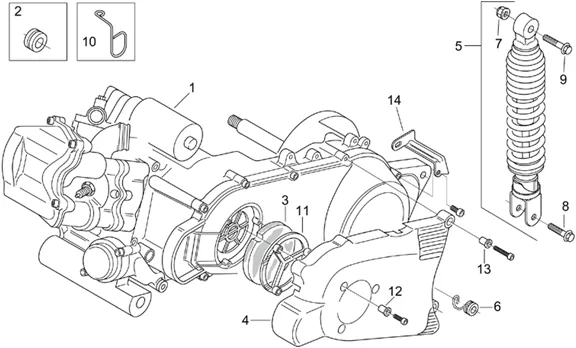

Moteur : 29.31 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/250/Leonardo_150_ST_2001-2004_29.31.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
Moteur avec refroid.à eau |
||||||
|
1 |
Moteur complet 120 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
2 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
|
3 |
AP8102522-FILTER REF. VARIATEUR More informationQuantity required : 1 |
||||||
|
4 |
Prise d'air var.noir; |
||||||
|
5 |
AP8123877-SHOCK ABSORBER More informationQuantity required : 2 |
||||||
|
6 |
AP8221206-CROCHET CABLE DOOR-CASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
9 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
||||||
|
10 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
Support filtre radiateur; |
||||||
|
12 |
AP8121266 - "DOUILLE EN ""T""" More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
13 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 2 |
||||||
|
14 |
AP8134362 - SUPPORT GARDE-BOUE AR.NOIR; More informationQuantity required : 1 |
