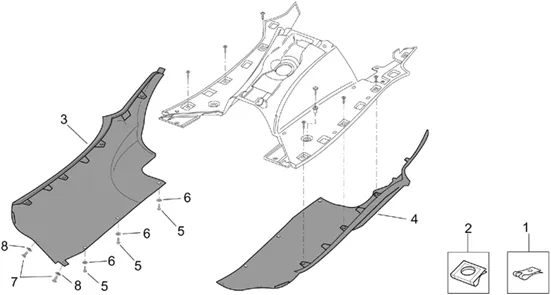

Chassis : 28.13 CARR. CENT. - FLANCS
Carr. cent. - Flancs
Search
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

1
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 3

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

2
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 3

AP8158706 - FLANC SS-REP-P.D ROUGE C.;

3
P2R reference P2R reference 51796
Maker reference Maker reference AP8158706

AP8158706 - FLANC SS-REP-P.D ROUGE C.;

More information

Quantity required : 1

AP8158717 - FIANCATA SOTTOPIANALE DX GRIG.

3
P2R reference P2R reference 51803
Maker reference Maker reference AP8158717

AP8158717-FIANCATA SOTTOPIANALE DX GRIG.

More information

Quantity required : 1

FIANCATA SOTTOPIAN.DX BLU INF.

3
P2R reference P2R reference
Maker reference Maker reference AP8158720

FIANCATA SOTTOPIAN.DX BLU INF.

AP8158729 - FIANCATA SOTTOPIAN.DX NERO AP.

3
P2R reference P2R reference 51810
Maker reference Maker reference AP8158729

AP8158729 - FIANCATA SOTTOPIAN.DX NERO AP.

More information

Quantity required : 1

AP8168657 - FLANC SS-REP-D GRIS;

3
P2R reference P2R reference 53300
Maker reference Maker reference AP8168657

AP8168657 - FLANC SS-REP-D GRIS;

More information

Quantity required : 1

AP8168675 - FLANC SS-REP-D ROUGE;

3
P2R reference P2R reference 53316
Maker reference Maker reference AP8168675

AP8168675 - FLANC SS-REP-D ROUGE;

More information

Quantity required : 1

AP8168778 - FLANC SS-REP-D NOIR;

3
P2R reference P2R reference 53376
Maker reference Maker reference AP8168778

AP8168778 - FLANC SS-REP-D NOIR;

More information

Quantity required : 1

Flanc ss-rep-D bleu

3
P2R reference P2R reference
Maker reference Maker reference AP8178294

Flanc ss-rep-D bleu

AP8158699 - FLANC SS-REP-P.G ROUGE C.;

4
P2R reference P2R reference 51790
Maker reference Maker reference AP8158699

AP8158699 - FLANC SS-REP-P.G ROUGE C.;

More information

Quantity required : 1

AP8158718 - FLANC SS-REP-P.G GRIS;

4
P2R reference P2R reference 51804
Maker reference Maker reference AP8158718

AP8158718 - FLANC SS-REP-P.G GRIS;

More information

Quantity required : 1

AP8158721 - FLANC SS-REP-P.G BLEU;

4
P2R reference P2R reference 51805
Maker reference Maker reference AP8158721

AP8158721 - FLANC SS-REP-P.G BLEU;

More information

Quantity required : 1

Flanc ss-rep-p.G noir;

4
P2R reference P2R reference
Maker reference Maker reference AP8158730

Flanc ss-rep-p.G noir;

AP8168658 - FLANC SS-REP-P.G GRIS;

4
P2R reference P2R reference 53301
Maker reference Maker reference AP8168658

AP8168658 - FLANC SS-REP-P.G GRIS;

More information

Quantity required : 1

AP8168676 - FLANC SS-REP-P.G ROUGE C.;

4
P2R reference P2R reference 53317
Maker reference Maker reference AP8168676

AP8168676 - FLANC SS-REP-P.G ROUGE C.;

More information

Quantity required : 1

AP8168779 - FLANC SS-REP-P.G NOIR;

4
P2R reference P2R reference 53377
Maker reference Maker reference AP8168779

AP8168779 - FLANC SS-REP-P.G NOIR;

More information

Quantity required : 1

AP8178295 - FIANCATA SOTTOP.SX BLU HILTON

4
P2R reference P2R reference 53931
Maker reference Maker reference AP8178295

AP8178295 - FIANCATA SOTTOP.SX BLU HILTON

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

5
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267

More information

Quantity required : 3

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

6
P2R reference P2R reference 71844
Maker reference Maker reference AP8150248

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

More information

Quantity required : 3

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

7
P2R reference P2R reference 71881
Maker reference Maker reference AP8150425

SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425

More information

Quantity required : 3

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

8
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 3
