Vehicle Exploded View - APRILIA LEONARDO 150 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

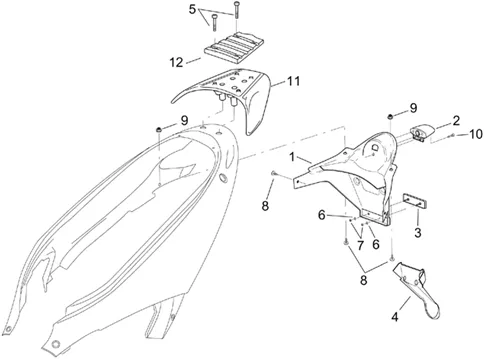

Chassis : 28.18 CARROSSERIE ARRIÉRE - PORTE-PLAQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/250/Leonardo_150_ST_2001-2004_28.18.PNG)
1 |
AP8126966 - PORTE-PLAQUE GRIS; More informationQuantity required : 1 |
||||||
|
1 |
Porte-plaque Bl. |
||||||
|
1 |
AP8156122 - PORTATARGA BLU MAIN More informationQuantity required : 1 |
||||||
|
1 |
AP8158522 - PORTE-PLAQUE BL.; More informationQuantity required : 1 |
||||||
|
1 |
AP8158645 - PORTE-PLAQUE NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8158703 - PORTE-PLAQUE, ROUGE; More informationQuantity required : 1 |
||||||
|
1 |
AP8168665 - PORTE-PLAQUE GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8168680 - PORTE-PLAQUE NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8168782 - PORTE-PLAQUE; More informationQuantity required : 1 |
||||||
|
2 |
AP8124367 - FEU DE PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
3 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
||||||
|
4 |
AP8126885-JUPE ANTI-ECL. AR GR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
5 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-149104 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.jpg)
6 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150011 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
8 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
9 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 6 |
||||||
|
10 |
AP8150460-SCREW TARAUD More informationQuantity required : 1 |
||||||
|
11 |
AP8158644 - POIGNEE PASS.NOIRE; More informationQuantity required : 1 |
||||||
|
11 |
AP8158553 - POIGN.P.BLEU; More informationQuantity required : 1 |
||||||
|
11 |
AP8158704 - POIGNEE PASSAGER PEINTE ROUGE; More informationQuantity required : 1 |
||||||
|
11 |
AP8168679 - POIGNEE PASSAGER PEINTE ROUGE; More informationQuantity required : 1 |
||||||
|
11 |
AP8178298 - MANIGLIA PASSEGGERO V.BLU HILT More informationQuantity required : 1 |
||||||
|
11 |
Poign.p.bleu |
||||||
|
11 |
Poignée passager peinte gris; |
||||||
|
11 |
Poignée passager peinte gris; |
||||||
|
12 |
AP8158319-COVER GRIP GREY More informationQuantity required : 1 |
||||||
|
12 |
AP8168662 - COUVERCLE POIGNEE GRIS; More informationQuantity required : 1 |
