Vehicle Exploded View - APRILIA LEONARDO 150 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

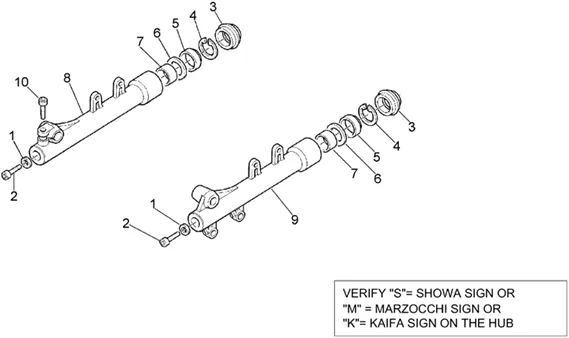

Chassis : 28.05 FOURCHE - FOURREAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/250/Leonardo_150_ST_2001-2004_28.05.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/7/1/img/72071.jpg)
1 |
AP8163435 - ROSETTA DI TENUTA More informationQuantity required : 2 |
||||||
1 |
AP8203572-WASHER ETANCHEITE More informationQuantity required : 2 |
||||||
|
1 |
AP8203794 - RONDELLE More informationQuantity required : 2 |
||||||
|
2 |
AP8123774 - VIS More informationQuantity required : 2 |
||||||
|
2 |
AP8163285-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
2 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 2 |
||||||
|
3 |
AP8123767 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
|
3 |
AP8163298-PARAPOLVERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/3/img/67413.jpg)
3 |
PROTECTOR POUSSIERE DE FORK OEM PIAGGIO 125 X9 2003 > 2005/APRILIA 125-250-300-400-500 ATLANTIC, 125-250 SCARABEO, 125-250 LEONARDO50 MX, RS 1999 > 2005, RX 1995 > 2004-600127 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/1/img/67411.jpg)
4 |
600125 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/5/7/img/71557.jpg)
4 |
CLIPS DE FORK OEM DERBI 50 SENDA 2000 > 2001-AP8123921 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/4/img/72054.jpg)
4 |
AP8163297 - ANELLO DI FERMO More informationQuantity required : 2 |
||||||
|
5 |
AP8103199-OIL SEAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/0/img/71530.jpg)
5 |
AP8123769-OIL SEAL More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/5/3/img/72053.jpg)
5 |
OIL SEAL (35X48X8) DE FORK KAIFA OEM PIAGGIO APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX-AP8163296 More informationQuantity required : 2 |
||||||
|
6 |
AP8123770 - RONDELLE More informationQuantity required : 2 |
||||||
|
6 |
AP8163295 - ROSETTA PARAOLIO More informationQuantity required : 2 |
||||||
|
6 |
Rondelle; |
||||||
|
7 |
AP8123771 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
7 |
AP8163294 - BUSSOLA DI SCORRIMENTO More informationQuantity required : 2 |
||||||
|
7 |
BUSH DE COULISSEMENT FORK OEM PIAGGIO 50 RS, RX, SX 2004 <-AP8203447 More informationQuantity required : 2 |
||||||
|
8 |
AP8123706 - FOURREAU D; More informationQuantity required : 1 |
||||||
|
8 |
AP8123772 - FOURREAU D More informationQuantity required : 1 |
||||||
|
8 |
Fourreau D |
||||||
|
9 |
AP8123707 - FOURREAU G; More informationQuantity required : 1 |
||||||
|
9 |
AP8123773 - FOURREAU G More informationQuantity required : 1 |
||||||
|
9 |
Fourreau G |
||||||
|
10 |
AP8203571 - VIS More informationQuantity required : 1 |
||||||
|
10 |
AP8203796-SCREW More informationQuantity required : 1 |
||||||
|
10 |
AP8223054-SCREW More informationQuantity required : 1 |
