Vehicle Exploded View - APRILIA LEONARDO 150 ST 2001-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

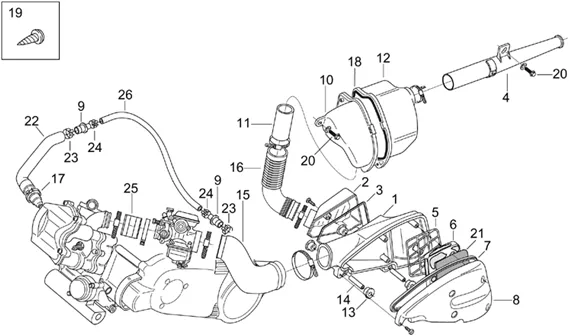

Chassis : 28.26 GROUPE FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/250/Leonardo_150_ST_2001-2004_28.26.PNG)
1 |
AP8158555 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
1 |
AP8158948 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
2 |
AP8158561 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/0/0/img/45200.jpg)
3 |
GASKET BODY AIR FILTER OEM PIAGGIO APRILIA 125 LEONARDO 1996 > 2004-AP8102638 More informationQuantity required : 1 |
||||||
|
4 |
AP8139963-SLEEVE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
5 |
AP8138472 - GRILLE FERMET.FILTRE; More informationQuantity required : 1 |
||||||
|
6 |
AP8102582 - FILTRE AIR ARRIERE More informationQuantity required : 1 |
||||||
|
7 |
Joint corps filtre |
||||||
|
8 |
AP8158556 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
8 |
Couvercle corps filtre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/8/img/71188.jpg)
9 |
FITTING A DEUX VOIES OEM APRILIA COMMON A LA RANGE-AP8102576 More informationQuantity required : 2 |
||||||
|
10 |
Couvercle corps filtre; |
||||||
|
11 |
Rallonge manchon aspiration; |
||||||
|
12 |
AP8138684 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
13 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 4 |
||||||
|
14 |
AP8121984-SPACER More informationQuantity required : 2 |
||||||
|
15 |
SLEEVE D'ASPIRATION ENTRE CARBURETTOR ET AIR FILTER OEM PIAGGIO APRILIA 125 LEONARDO 1997 > 2004-AP8144202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/8/2/img/46682.jpg)
16 |
SLEEVE D'ASPIRATION AIR FILTER OEM PIAGGIO APRILIA 125 LEONARDO 1996 > 2004-AP8120888 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/5/img/55355.jpg)
17 |
CLAMP CLIC 290X8. 9 OEM APRILIA COMMON A LA RANGE-AP8201409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
18 |
GASKET COVER DE AIR FILTER (D3) OEM PIAGGIO COMMON A LA RANGE-AP8120615 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
19 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
20 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
21 |
AP8138949-GRILLE COVER-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/0/6/img/46706.jpg)
22 |
OIL BREATHER HOSE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2001, SCARABEO 1999>2006 -AP8120977- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
23 |
AP8201169-CLAMP CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
24 |
AP8102239-CLAMP CLIC More informationQuantity required : 2 |
||||||
|
25 |
AP0267137 - MANCHON DE CARBURATEUR More informationQuantity required : 1 |
||||||
|
26 |
890499-FUEL HOSE D. 8X13 More informationQuantity required : 1 |
