Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

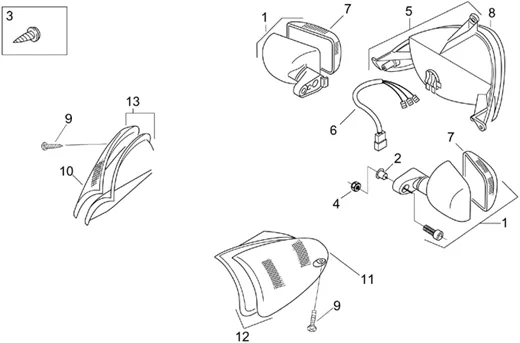

Chassis : 28.35 FEUX II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.35.PNG)
1 |
AP8112922 - CLIGNOTANT ARRIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/0/img/71500.jpg)
2 |
BUSH EN T (6. 5X8. 6X9) OEM PIAGGIO COMMON A LA RANGE-AP8121929 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
4 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
5 |
Feu arrière; |
||||||
|
6 |
AP8212691 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
7 |
AP8112756-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
8 |
Glace phare AR; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
9 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 4 |
||||||
|
10 |
AP8124543 - GLACE CLIGN. AV D; More informationQuantity required : 1 |
||||||
|
11 |
AP8124544-GLACE CLIGN. AV G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/2/2/img/47522.jpg)
12 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR 1997>2000, 125 LEONARDO 1996>1998 -AP8124541- More informationQuantity required : 1 |
||||||
|
13 |
FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 50 SR 1997 > 2000, 125 LEONARDO 1996 > 1998-AP8124540 More informationQuantity required : 1 |
