Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

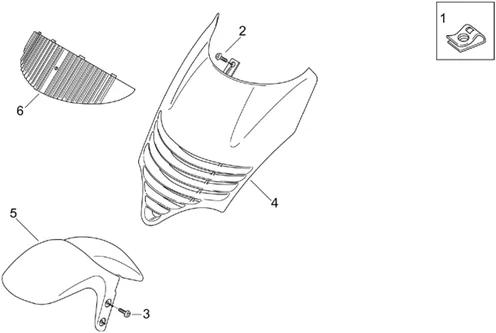

Chassis : 28.08 CARROSSERIE AV. - COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.08.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
1 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
2 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
3 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 4 |
||||||
4 |
Coffre av., bleu s.; |
||||||
|
4 |
Coffre av., gris; |
||||||
|
4 |
Coffre av., rouge l.; |
||||||
|
4 |
Coffre av., peint vert; |
||||||
|
4 |
AP8139199 - COFFRE AV., JAUNE BRIO; More informationQuantity required : 1 |
||||||
|
4 |
AP8139205 - COFFRE AV., VIO MAUVE; More informationQuantity required : 1 |
||||||
|
4 |
AP8139211 - COFFRE AV., BL MIAMI; More informationQuantity required : 1 |
||||||
|
5 |
Garde-boue avant peint bleu s.; |
||||||
|
5 |
Garde-boue avant peint gris; |
||||||
|
5 |
Garde-boue AV turq.; |
||||||
|
5 |
Garde-boue AV. peint vert; |
||||||
|
5 |
Gde-b AV jaune brio; |
||||||
|
5 |
Gde-b AV violet mauve; |
||||||
|
5 |
Gde-b AV. bl miami; |
||||||
|
6 |
AP8138407 - GRILLE SUP.TABLIER NOIR; More informationQuantity required : 1 |
