Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

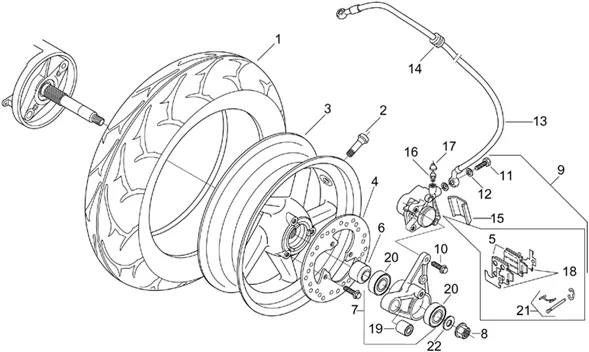

Chassis : 28.33 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
2 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
3 |
AP8108706 - ROUE ARRIERE NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.jpg)
4 |
BRAKE DISC OEM PIAGGIO 50 SCARABEO, RALLY, SR, GULLIVER, 125 LEONARDO, MOJITO-AP8213231 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/5/img/71315.jpg)
5 |
BRAKE PAD OEM PIAGGIO 50 SCARABEO 2001 > 2009-AP8113644 More informationQuantity required : 1 |
||||||
|
5 |
AP8113663-PLAQUETTES REAR (PAIR) More informationQuantity required : 1 |
||||||
|
6 |
AP8125726-SPACER REAR WHEEL More informationQuantity required : 1 |
||||||
|
7 |
AP8134308 - PLAQ.FIX PINCES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
8 |
NUT FLANGE (14X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8152244 More informationQuantity required : 1 |
||||||
|
9 |
Pince frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
10 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
11 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
12 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
13 |
Tuyau frein arrière |
||||||
|
14 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
15 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
16 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
17 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
18 |
Platine antisiff. AV-couple |
||||||
|
19 |
AP8120970 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
20 |
BEARING (20X42X12) CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-82656R More informationQuantity required : 2 |
||||||
|
21 |
AP8213227-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
|
22 |
AP8150471-WASHER ELASTIC More informationQuantity required : 1 |
