Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

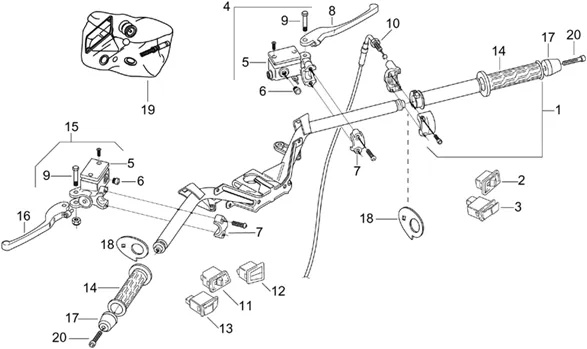

Chassis : 28.18 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.18.PNG)
1 |
Commande gaz+poignée; |
||||||
|
2 |
AP8124207-POUSSOIR FEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
3 |
BUTTON/CONTACTEUR DE STARTER MOTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124208 More informationQuantity required : 1 |
||||||
|
4 |
AP8113603 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
5 |
AP8213475-COVER PUMP More informationQuantity required : 2 |
||||||
|
6 |
Hublot pompe frein |
||||||
|
7 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/7/img/56647.jpg)
8 |
FRONT BRAKE LEVER- GRIMECA "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, RALLY, SR, AMICO, 125 LEONARDO -AP8218273 More informationQuantity required : 1 |
||||||
|
9 |
AP8221231 - PIVOT DE LEVIER FREIN AV. More informationQuantity required : 2 |
||||||
|
10 |
Câble gaz |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
11 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/2/9/img/47429.jpg)
12 |
SWITCH DE INDICATOR OEM PIAGGIO 50-125 MOJITO, 50 RALLY, 125 LEONRDO 1996 > 2004-AP8124081 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
13 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
|
14 |
AP8118444 - COUPLE MANETTES, GRIS; More informationQuantity required : 1 |
||||||
|
15 |
Maît.cyl. frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/3/0/img/46330.jpg)
16 |
BRAKE LEVER ARIRERE OEM PIAGGIO APRILIA 50 SCARABEO 2T 1998 > 2006, 125 LEONARDO 1996 > 1998-AP8118461 More informationQuantity required : 1 |
||||||
|
17 |
AP8102717-MASSE ANTIVIBRATILE HANDLEBAR More informationQuantity required : 2 |
||||||
|
18 |
AP8144128-LATCH GUID LAT. More informationQuantity required : 2 |
||||||
|
19 |
AP8113636 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
20 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
