Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

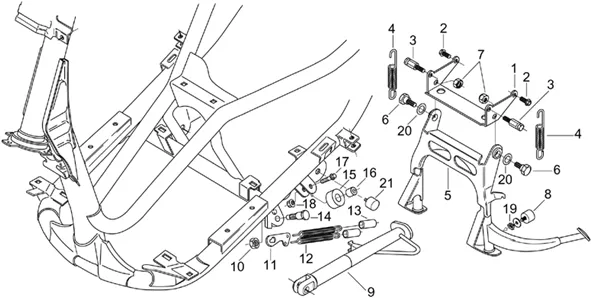

Chassis : 28.02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.02.PNG)
1 |
AP8134321-PLATE STAND CENTR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
2 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/6/5/img/46965.jpg)
3 |
AP8121937-SCREW ACCROCHAGE SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
4 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 2 |
||||||
|
5 |
AP8146277-CENTRE STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/6/4/img/46964.jpg)
6 |
SCREW MOUNTING DE STAND OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 125 LEONARDO, SCARABEO 2008 <-AP8121932 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/9/img/71739.jpg)
8 |
BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030 More informationQuantity required : 1 |
||||||
|
9 |
AP8135623 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
10 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/5/0/img/46950.jpg)
11 |
PLATE MOUNTING SPRING SIDE STAND OEM APRILIA 125-250 LEONARDO 1996 > 2004-AP8121876 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
12 |
SPRING RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/2/img/49632.jpg)
13 |
RUBBER SPRING DE STAND OEM APRILIA 125 LEONARDO 1996 > 2004-AP8144152 More informationQuantity required : 2 |
||||||
|
14 |
AP8152295 - VIS BEQUILLE LAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/0/2/img/46602.jpg)
15 |
ROULETTE DE SIDE STAND OEM PIAGGIO 125 SCARABEO 1999 > 2004-AP8120338 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/1/7/img/46717.jpg)
16 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8121012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
17 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
|
19 |
AP8152326-NUT More informationQuantity required : 1 |
||||||
|
20 |
AP8150466-SPRING A CUP More informationQuantity required : 2 |
||||||
|
21 |
BUFFER RUBBER (6X10) OEM APRILIA COMMON A LA RANGE-AP8144030 More informationQuantity required : 1 |
