Vehicle Exploded View - MOTO-GUZZI GRISO 1100 Griso V IE 1100 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

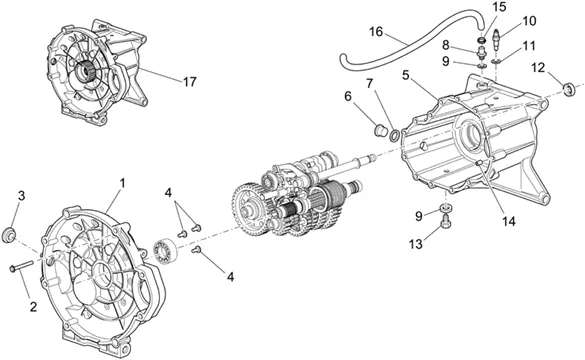

Moteur : 34.50 CARTER DE BOÎTE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.50.PNG)
1 |
GU05200531-BELL CLUTCH More informationQuantity required : 1 |
||||||
|
2 |
GU97202355-SCREW FLANGE M8X20 More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
3 |
CAP RUBBER REGARD OEM MOTO GUZZI COMMON A LA RANGE-GU93180220 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
4 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 3 |
||||||
|
5 |
GU05200231-CASING DE BOX VITESSES More informationQuantity required : 1 |
||||||
|
6 |
GU95980319-CAP OIL M18X1, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
7 |
WASHER CUIVRE (18. 25X24X1) OEM MOTO GUZZI COMMON A LA RANGE-GU18144350 More informationQuantity required : 1 |
||||||
|
8 |
GU05204930-CAP PURGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
9 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/8/img/129548.jpg)
10 |
SENSOR OF POINT MORT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, GRISO, NORGE, 940 GELLAGIO, 750 V7, NEVADA, 1100 CALIFORNIA, V11, 1200 STELVIO, SPORT-GU19207220 More informationQuantity required : 1 |
||||||
|
11 |
B063025-GUARNIZIONE 8, 7X14. 2X1. 3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/8/img/132158.jpg)
12 |
OIL SEAL (14X24X7) OEM MOTO GUZZI COMMON A LA RANGE-GU90401424 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
13 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
|
14 |
GU19002020-BUSH 6, 6X9X13 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
15 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
16 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
|
17 |
GU06991500 - BOITE DE VITESSES CPL. More informationQuantity required : 1 |
