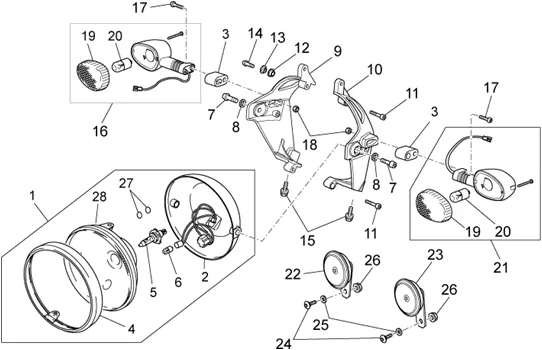

Vehicle Exploded View - MOTO-GUZZI GRISO 1100 Griso V IE 1100 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)
Chassis : 33.35 FEU AV/KLAXON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.35.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/5/7/img/129057.jpg)
1 |
HEAD LIGHT - "PIAGGIO GENUINE PART" MOTO-GUZZI 850-1100-1200 GRISO, 750 NEVADA, V7 CLASSIC, V7 STONE -GU06740500 More informationQuantity required : 1 |
||||||
1 |
GU06740501-HEADLAMP AV. COMPLETE LEFT More informationQuantity required : 1 |
||||||
|
2 |
GU06740200-CALOTTE CHR. LAMP FRONT More informationQuantity required : 1 |
||||||
|
3 |
GU017534401-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
4 |
ENTOURAGE DE HEADLAMP CHROME MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007 > 2012-640598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
6 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/6/img/133216.jpg)
7 |
SCREW BTR (8X30) DOOR LUGGAGE OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO-GU98700430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
8 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
9 |
GU06496100-BRACKET RIGHT More informationQuantity required : 1 |
||||||
|
10 |
GU06496200-BRACKET LEFT More informationQuantity required : 1 |
||||||
|
11 |
GU98610335-SCREW TCEI M6X18 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
12 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/2/img/71412.jpg)
13 |
AP8120675 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
14 |
GU98230619-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
15 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 2 |
||||||
|
16 |
FRONT RIGHT INDICATOR/REAR LEFT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 GRISO-GU06750600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/8/img/133198.jpg)
17 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-GU98690335 More informationQuantity required : 2 |
||||||
|
18 |
GU92787006-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/6/6/img/129066.jpg)
19 |
GU06753700-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
20 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/4/2/img/126142_20251023145522.jpg)
21 |
FRONT LEFT INDICATOR/REAR RIGHT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 GRISO-GU06751601 More informationQuantity required : 1 |
||||||
|
22 |
883463-CLAXON TONO L More informationQuantity required : 1 |
||||||
|
23 |
883462-CLAXON TONO H More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
24 |
SCREW BTR HEAD BOMBEE (8X16) OEM PIAGGIO COMMON A LA RANGE-582428 More informationQuantity required : 2 |
||||||
|
25 |
GU95021108-WASHER ELASTIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
26 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92650138 More informationQuantity required : 2 |
||||||
|
27 |
883417-ANELLO DI TENUTA (O-RING) 12X1. 5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/5/6/img/129056.jpg)
28 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO MOTO-GUZZI GRISO, NEVADA, V7 2016 <-GU06740400 More informationQuantity required : 1 |
