Vehicle Exploded View - MOTO-GUZZI GRISO 1100 Griso V IE 1100 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

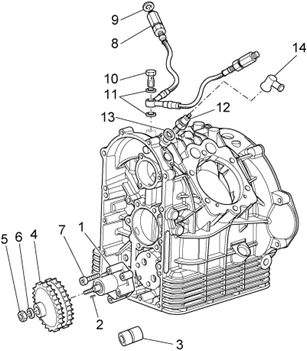

Moteur : 34.46 POMPE HUILE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.46.PNG)
1 |
GU30146400 - POMPE HUILE More informationQuantity required : 1 |
||||||
|
2 |
GU13148300 - CLAVETTE More informationQuantity required : 1 |
||||||
|
3 |
GU92252210-BEARING A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/6/3/6/img/130636.jpg)
4 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU30147700 More informationQuantity required : 1 |
||||||
|
5 |
GU92602308-NUT More informationQuantity required : 1 |
||||||
|
6 |
GU95120085-WASHER ELASTIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
7 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 4 |
||||||
|
8 |
GU05153630-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/0/img/129950.jpg)
9 |
GASKET (10. 2X14X1. 5) OEM MOTO GUZZI COMMON A LA RANGE-GU25656102 More informationQuantity required : 2 |
||||||
|
10 |
GU95990037-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
11 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/9/4/img/129394.jpg)
12 |
MANOMETRE/DETECTEUR PRESSION OIL OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU17768750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
13 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 1 |
||||||
|
14 |
976688-CAPPUCCIO (SOST. 883888) More informationQuantity required : 1 |
All the exploded views of this vehicle
-
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008.PNG)
-
33.01 Chassis
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.01.PNG)
-
33.02 Béquille latérale
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.02.PNG)
-
33.03 Repose-Pieds I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.03.PNG)
-
33.04 Repose-Pieds II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.04.PNG)
-
33.05 Levier boîte de vitesses
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.05.PNG)
-
33.06 Direction
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.06.PNG)
-
33.07 Fourche Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.07.PNG)
-
33.08 Fourche Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.08.PNG)
-
33.09 Fourche arriere
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.09.PNG)
-
33.10 Transmission cpl.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.10.PNG)
-
33.11 Trans.cpl.-Vitesses
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.11.PNG)
-
33.12 Trans.cpl.-Couple conique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.12.PNG)
-
33.13 Biellette et der. Amortisseur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.13.PNG)
-
33.14 Réservoir essence
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.14.PNG)
-
33.15 Carrosserie av. - Convoyeur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.15.PNG)
-
33.16 Garde-boue AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.16.PNG)
-
33.17 Selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.17.PNG)
-
33.18 Carr. Arriére - Garde-boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.18.PNG)
-
33.19 Carr. Arriére - Qu.Car
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.19.PNG)
-
33.20 Tableau de bord
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.20.PNG)
-
33.21 Guidon - Commandes
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.21.PNG)
-
33.22 Maît. cyl. frein AV
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.22.PNG)
-
33.23 Commande embrayage cpl
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.23.PNG)
-
33.24 Radiateur huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.24.PNG)
-
33.25 Installation Blow-by
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.25.PNG)
-
33.26 Alimentation
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.26.PNG)
-
33.27 Corps filtre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.27.PNG)
-
33.28 Groupe echappement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.28.PNG)
-
33.29 Pompe ess. interne
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.29.PNG)
-
33.30 Roue Av.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.30.PNG)
-
33.31 Pince frein avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.31.PNG)
-
33.32 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.32.PNG)
-
33.33 Maît.cyl. frein AR
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.33.PNG)
-
33.34 Pince frein AR
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.34.PNG)
-
33.35 Feu AV/Klaxon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.35.PNG)
-
33.36 Feu arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.36.PNG)
-
33.37 Circuit electrique I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.37.PNG)
-
33.38 Circuit electrique II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.38.PNG)
-
33.39 Kit serrure
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.39.PNG)
-
33.40 Plaquettes-decal.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.40.PNG)
-
33.61 Sys.récup.vap.ess.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.61.PNG)
-
34.41 Carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.41.PNG)
-
34.42 Culasse et soupapes I
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.42.PNG)
-
34.43 Culasse et soupapes II
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.43.PNG)
-
34.44 Arbre moteur cpl.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.44.PNG)
-
34.45 Distribution
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_34.45.PNG)
-

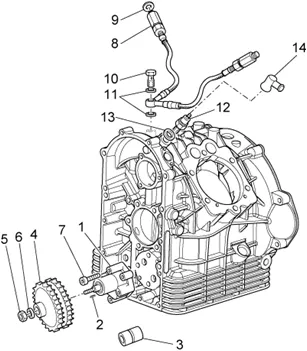

34.46 Pompe huile I
