Vehicle Exploded View - MOTO-GUZZI GRISO 1100 Griso V IE 1100 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

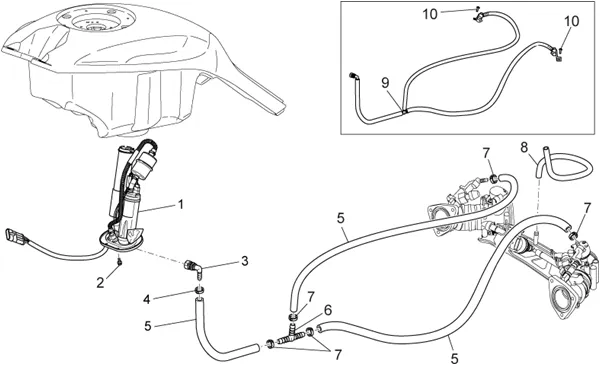

Chassis : 33.26 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.26.PNG)
1 |
887423 - POMPA CARBURANTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/4/1/5/img/131415.jpg)
3 |
FUEL PUMP UNION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, 1100 GRISO -GU32106610 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
4 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/4/img/71744.jpg)
5 |
FUEL HOSE (6X13) "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007, FUTURA, RSV-2 1998>2008, TUONO V2 2002>2009/MOTO-GUZZI 750-1100 BREVA 2003>2009,1100 GRISO 2005>2008 -AP8144069 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/6/img/71756.jpg)
6 |
FITTING EN T OEM PIAGGIO COMMON A LA RANGE-AP8144303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
7 |
AP8102239-CLAMP CLIC More informationQuantity required : 5 |
||||||
|
8 |
GU05135930 - TUYAU More informationQuantity required : 1 |
||||||
|
9 |
FUEL HOSE OEM PIAGGIO MOTO-GUZZI 850, 1100 GRISO-977064 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
