Vehicle Exploded View - MOTO-GUZZI GRISO 1100 Griso V IE 1100 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

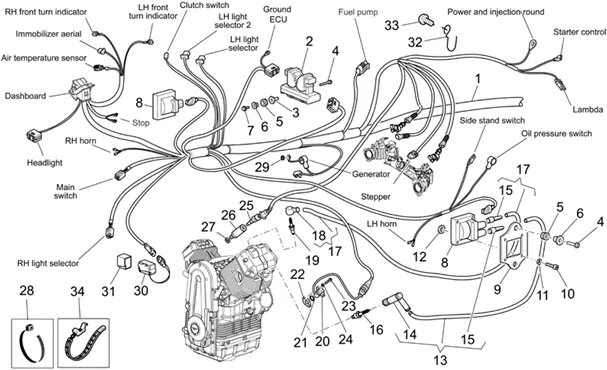

Chassis : 33.37 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/492/Griso_V_IE_1100_2005-2008_33.37.PNG)
1 |
HARNESS ELECTRIC WITH INTERRUPTEUR LINEAIRE OEM PIAGGIO MOTO-GUZZI 1200 GRISO-978150 More informationQuantity required : 1 |
||||||
|
1 |
GU06747100-WIRING PRINCIPAL More informationQuantity required : 1 |
||||||
|
2 |
GU06729500 - CENTRALE More informationQuantity required : 1 |
||||||
|
3 |
GU05729230-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
5 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
6 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
7 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
|
8 |
GU05716530-BOBINE HT * More informationQuantity required : 2 |
||||||
|
9 |
GU05716730-BRACKET BOBINE More informationQuantity required : 2 |
||||||
|
10 |
GU98680125-SCREW M4X25 More informationQuantity required : 8 |
||||||
|
11 |
GU95008204-WASHER 4, 3X8X0, 5 More informationQuantity required : 8 |
||||||
|
12 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 8 |
||||||
|
13 |
GU06718300 - CABLE HT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/7/5/img/128275.jpg)
14 |
ANTIPARASITE (EQUIVALENT LB05E) OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT, RCR 2018 >-GU03717450 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
15 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.jpg)
16 |
SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061 More informationQuantity required : 2 |
||||||
|
17 |
GU06718301 - CABLE HT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/3/4/img/108534.jpg)
18 |
ANTIPARASITE OEM PIAGGIO MOTO-GUZZI 940 BELLAGIO, 1100 CALIFORNIA, GRISO (FOR SPARK PLUG D 10MM)-GU06717400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/6/5/3/img/124653.jpg)
19 |
SPARK PLUG PMR8B OEM PIAGGIO 1200 MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO, 1100 CALIFORNIA, BELLAGIO-GU05717030 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
20 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
21 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/8/img/101948.jpg)
22 |
GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700 More informationQuantity required : 1 |
||||||
|
22 |
GU01722701-GUARNIZIONE 0, 4MM More informationQuantity required : 1 |
||||||
|
22 |
GU01722702-GUARNIZIONE 0, 6MM More informationQuantity required : 1 |
||||||
|
22 |
GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703 More informationQuantity required : 1 |
||||||
|
22 |
GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704 More informationQuantity required : 1 |
||||||
|
22 |
GU01722705-GUARNIZIONE 1, 5MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
22 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
23 |
SCREW BTR (5X12) OEM PIAGGIO COMMON ALA RANGE MOTO-GUZZI-GU98682212 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.jpg)
24 |
WASHER PLATE (5. 3X10X0. 8) OEM PIAGGIO COMMON A LA RANGE-GU95008205 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
25 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
26 |
BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
27 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 1 |
||||||
|
28 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 10 |
||||||
|
28 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
28 |
HOSE CLAMP NYLON TYPE RILSAN 3. 6X375MM OEM PIAGGIO COMMON A LA RANGE-GU93304390 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
29 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
30 |
SENSOR DE CHUTE/CAPEUR ANTI-BASCULEMEMENT OEM PIAGGIO COMMON A LA RANGE-584509 More informationQuantity required : 1 |
||||||
|
31 |
AP8144046 - CAOUTCHOUC DETECT. INCL. More informationQuantity required : 1 |
||||||
|
32 |
AP8121475-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
33 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
|
34 |
GU06609600-CLAMP More informationQuantity required : 3 |
