Vehicle Exploded View - MOTO-GUZZI GRISO 1200 8V 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

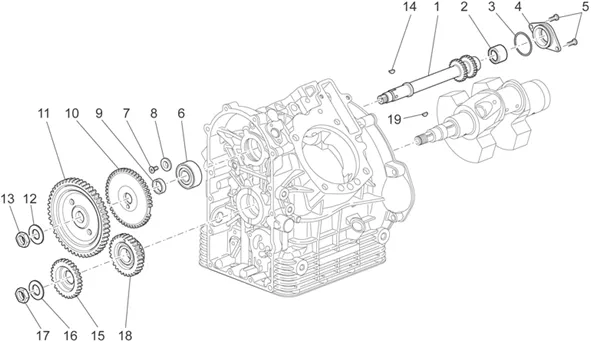

Moteur : 34.47 DISTRIBUTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/489/Griso_1200_8V_2007-2013_34.47.PNG)
1 |
976330-ALBERO DISTRIBUZIONE 4V More informationQuantity required : 1 |
||||||
|
2 |
976381-GABB RULL 25X32X12 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/5/8/img/99858.jpg)
3 |
O-RING (37. 82X1. 78) ORIGINEMOTO GUZZI COMMON A LA RANGE-976488 More informationQuantity required : 1 |
||||||
|
4 |
976331-FLANGIA ALBERO DISTRIBUZIONE 4V * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/3/8/img/133038.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98350315 More informationQuantity required : 2 |
||||||
|
6 |
976355-CUSC. SFERE 20X47X18 62204 2RS1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/3/img/71923.jpg)
7 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152166 More informationQuantity required : 2 |
||||||
|
8 |
873928-WASHER More informationQuantity required : 1 |
||||||
|
9 |
976334-SPACER 20X26X7, 5 More informationQuantity required : 1 |
||||||
|
10 |
976538-WHEEL FONICA DISTRIBUZION More informationQuantity required : 1 |
||||||
|
11 |
874281-INGR. CONDOTTO DISTRIBUZIONE More informationQuantity required : 1 |
||||||
|
12 |
GU14433400-WASHER ELASTIC More informationQuantity required : 1 |
||||||
|
13 |
GU92750180-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/4/img/132374.jpg)
14 |
CLAVETTE OEM MOTO GUZZI COMMON A LA RANGE-GU91600450 More informationQuantity required : 1 |
||||||
|
15 |
8787074-INGR. CONDOUT. PUMP OIL (SOST. IL 878707) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/9/0/6/img/99906.jpg)
16 |
WASHER ELASTIC GEAR DE TIMING (25. 3X38X2. 5) OEM PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STLEVIO, SPORT, 1400 CALIFORNIA, AUDACE, ELDORADO-976665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/7/9/img/132479.jpg)
17 |
NUT DE SPROCKET DE TIMING OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU92602525 More informationQuantity required : 1 |
||||||
|
18 |
874280-INGRANAGGIO CONDUTTORE DISTR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/3/img/132373.jpg)
19 |
CLAVETTE (3X6. 5) DISRIBUTION OEM MOTO GUZZI 1400 AUDACE, CALIFORNIA, ELDORADO-GU91600365 More informationQuantity required : 1 |
