Vehicle Exploded View - MOTO-GUZZI GRISO 1200 8V 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

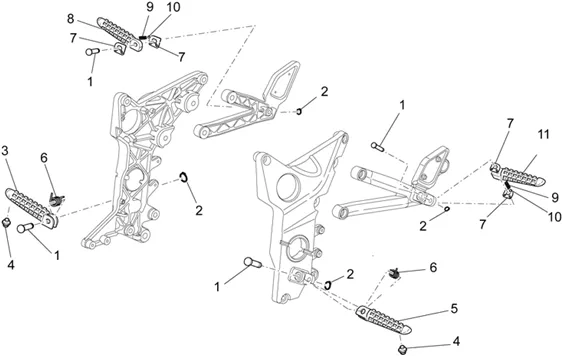

Chassis : 33.03 REPOSE-PIEDS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/489/Griso_1200_8V_2007-2013_33.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/3/img/71473.jpg)
1 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI/APRILIA-AP8121567 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
2 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/9/3/1/img/98931.jpg)
3 |
FOOTREST PILOTE RIGHT OEM MOTO GUZZI 1200 GRISO, SPORT-884095 More informationQuantity required : 1 |
||||||
3 |
RIGHT PASSENGER FOOTREST (GOLDEN COLOUR) "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, SPORT -977822- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/0/img/73460.jpg)
4 |
PROTECTIVE SCREW FOR FOOTREST"PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI/APRILIA RANGE -GU30441005- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/9/3/2/img/98932.jpg)
5 |
FOOTREST PILOTE LEFT OEM PIAGGIO MOTO-GUZZI 1200 GRISO, SPORT-884096 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/4/1/5/img/100415.jpg)
5 |
FOOTREST PILOTE LEFT COULEUR OR OEM PIAGGIO MOTO-GUZZI 1200 GRISO, SPORT-977823 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
6 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/0/3/img/71703.jpg)
7 |
PLATE FDC PASSENGER FOOTREST OEM PIAGGIO COMMON A LA RANGE-AP8134451 More informationQuantity required : 4 |
||||||
|
8 |
884097-PEDANA PASSEGGERO DX * More informationQuantity required : 1 |
||||||
|
8 |
977824 - PEDANA PASSEG DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
9 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
10 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
|
11 |
884098-PEDANA PASSEGGERO SX More informationQuantity required : 1 |
||||||
|
11 |
977825-PEDANA PASSEG SX More informationQuantity required : 1 |
