Vehicle Exploded View - MOTO-GUZZI GRISO 1200 8V 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

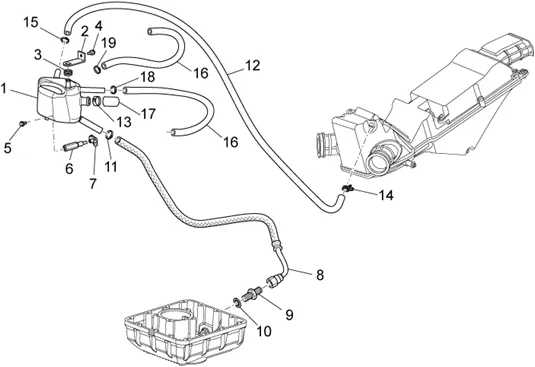

Chassis : 33.24 INSTALLATION BLOW-BY
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/489/Griso_1200_8V_2007-2013_33.24.PNG)
1 |
978767-VASO ESPANSIONE BLOW-BY More informationQuantity required : 1 |
||||||
|
2 |
GU06412300-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
3 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
5 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
6 |
GU06164630-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
7 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
8 |
2B001410-HOSE More informationQuantity required : 1 |
||||||
|
9 |
GU01161331-REDUCTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/0/img/73410.jpg)
10 |
GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/8/img/71198.jpg)
11 |
CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765 More informationQuantity required : 1 |
||||||
|
12 |
GU00823955080-TUBO TOA 175/70 8X13 More informationQuantity required : 1 |
||||||
|
13 |
GU93306018-CLAMP 17X29X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
14 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
15 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/5/7/img/100757.jpg)
16 |
HOSE RENIFLARD OEM PIAGGIO MOTO-GUZZI 1200 GRISO 2009 >-978765 More informationQuantity required : 2 |
||||||
|
17 |
978781-CAPPELLOTTO PER VASO BLOW-BY More informationQuantity required : 1 |
||||||
|
18 |
GU93306017-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
19 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 1 |
