Vehicle Exploded View - MOTO-GUZZI GRISO 1200 8V 2007-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

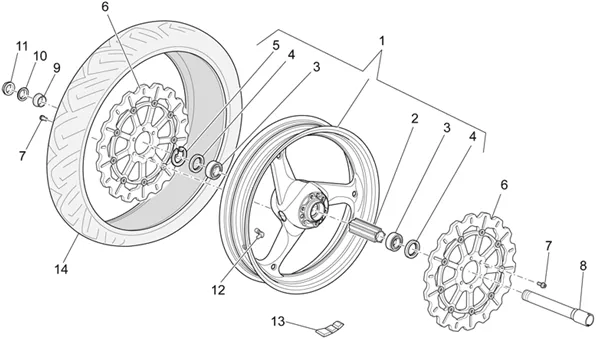

Chassis : 33.29 ROUE AV.SE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/489/Griso_1200_8V_2007-2013_33.29.PNG)
1 |
883883-WHEEL ANT COMPLE 3, 5X17 " DARK GRAY * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/5/img/128855.jpg)
1 |
BREMBO FRONT WHEEL "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 BREVA, 1200 GRISO, 1200 NORGE, 1200 SPORT GRIS FONCE -GU05610530 More informationQuantity required : 1 |
||||||
|
1 |
884163 - RUOTA ANT RAGGIATA (CERCHIO GIANT) More informationQuantity required : 1 |
||||||
|
1 |
978528 - (*)RUOTA ANT RAGGIATA GRISO SCR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/6/img/128856.jpg)
2 |
GU05615230-SPACER ROULEMENTS More informationQuantity required : 1 |
||||||
|
2 |
1R000129 - PNEU 120/70 ZR 17M/C More informationQuantity required : 1 |
||||||
|
2 |
Pneu avant |
||||||
|
3 |
AP8125777-BEARING More informationQuantity required : 2 |
||||||
|
4 |
OIL SEAL (30X47X7) OEM PIAGGIO COMMON A LA RANGE-AP8125773 More informationQuantity required : 2 |
||||||
|
5 |
AP8125779-BUSH SEEGER More informationQuantity required : 1 |
||||||
|
5 |
978516-SPACER ROULEMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/4/6/img/69746.jpg)
6 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 750 DORSODURO, SHIVER/MOTO-GUZZI 1200 GRILLO D.320 MM - 856774 More informationQuantity required : 2 |
||||||
|
6 |
887084-RAGGIO ANTERIORE More informationQuantity required : 36 |
||||||
|
6 |
978530-RAGGIO ANT More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 12 |
||||||
|
7 |
978810-NIPPLO SISTEMA STS More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/8/img/126068.jpg)
8 |
WHEEL SPINDLE FRONT OEM PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, GRISO, 1200 NORGE, SPORT-GU05614130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/7/8/1/img/98781_20260918164104.jpg)
8 |
BRAKE DISC FRONT (320 MM) OEM PIAGGIO MOTO-GUZZI 750 V7 2017 >, V85 2019 > V9 2016 >, 750 NEVADA 2012 >, 1200 GRISO 2009 >, 940 BELLAGIO 2007 >-883688 More informationQuantity required : 2 |
||||||
|
8 |
978764 - DISCO FRENO ANT 320X5 FLANGIA NERO More informationQuantity required : 2 |
||||||
|
9 |
GU06616300-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
9 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/2/img/132672.jpg)
10 |
GU95005325 - RONDELLE 25,2X36X1 More informationQuantity required : 1 |
||||||
|
10 |
WHEEL SPINDLE FRONT OEM PIAGGIO MOTO-GUZZI 1200 GRISO-978497 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
11 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
|
11 |
NUT DE WHEEL OEM APRILIA COMMON A LA RANGE MOTO-AP8152335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
12 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
||||||
|
12 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
13 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
13 |
978498-SPACER ESTERNO WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
14 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/6/6/img/100766.jpg)
15 |
ANNEAU ELASTIC NUT DE SPOKE TUBELESS OEM PIAGGIO MOTO-GUZZI 940 BELLAGIO, 1400 ELDORADO, 1200 STELVIO, GRISO-978811 More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/8/img/132208.jpg)
16 |
O-RING FRONT WHEEL/REAR (6, 07X1, 78) OEM PIAGGIO MOTO-GUZZI 1400 ELDORADO, 940 BELLAGIO, 1200 GRISO, STELVIO-GU90706061 More informationQuantity required : 36 |
