Vehicle Exploded View - MOTO-GUZZI GRISO 1200 8V 2007-2013 MOTO-GUZZI

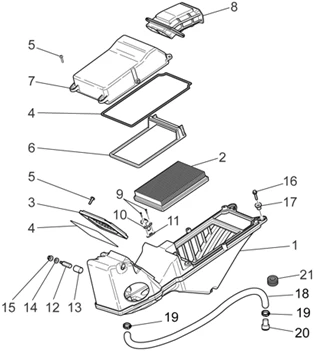

Chassis : 33.26 CORPS FILTRE
Corps filtre
Search
GU06114000 - CORPS FILTRE

1
P2R reference P2R reference 128954
Maker reference Maker reference GU06114000

GU06114000-BODY FILTER

More information

Quantity required : 1

ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4 APRC, TUONO, 450-500 RXV, SXV/MOTO-GUZZI 1400 AUDACE, CALIFORNIA 2012 >, ELDORADO, 1200 GRISO, STELVIO, V85-AP8104329

2
P2R reference P2R reference 71222
Maker reference Maker reference AP8104329

ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4 APRC, TUONO, 450-500 RXV, SXV/MOTO-GUZZI 1400 AUDACE, CALIFORNIA 2012 >, ELDORADO, 1200 GRISO, STELVIO, V85-AP8104329

More information

Quantity required : 1

GU06113300 - COUVERCLE INSP.

3
P2R reference P2R reference 128953
Maker reference Maker reference GU06113300

GU06113300-COVER INSP.

More information

Quantity required : 1

890513 - JOINT D.4

4
P2R reference P2R reference 70795
Maker reference Maker reference 890513

890513-GASKET D. 4

More information

Quantity required : 1

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

5
P2R reference P2R reference 71970
Maker reference Maker reference AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

More information

Quantity required : 10

AIR FILTER RETAINING SUPPORT "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO -GU06114200

6
P2R reference P2R reference 124650
Maker reference Maker reference GU06114200

AIR FILTER RETAINING SUPPORT "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO -GU06114200

More information

Quantity required : 1

884306 - COPERCHIO FISSAGGIO FILTRO ARIA

7
P2R reference P2R reference 99044
Maker reference Maker reference 884306

884306 - COPERCHIO FISSAGGIO FILTRO ARIA

More information

Quantity required : 1

AP8144164 - MANCHON D'ASPIRATION;

8
P2R reference P2R reference 71752
Maker reference Maker reference AP8144164

AP8144164-SLEEVE D'ASPIRATION

More information

Quantity required : 1

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

9
P2R reference P2R reference 71879
Maker reference Maker reference AP8150421

SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421

More information

Quantity required : 2

DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330

10
P2R reference P2R reference 73466
Maker reference Maker reference GU30729330

DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330

More information

Quantity required : 1

GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931

11
P2R reference P2R reference 73459
Maker reference Maker reference GU30027931

GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931

More information

Quantity required : 1

SPINDLE LOGEMENT AIR FILTER OEM MOTO GUZZI 1200 GRISO 2005 > 2016-AP8221270

12
P2R reference P2R reference 72309
Maker reference Maker reference AP8221270

SPINDLE LOGEMENT AIR FILTER OEM MOTO GUZZI 1200 GRISO 2005 > 2016-AP8221270

More information

Quantity required : 2

AP8220526 - CAOUTCHOUC

13
P2R reference P2R reference 72287
Maker reference Maker reference AP8220526

AP8220526-RUBBER

More information

Quantity required : 2

WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800

14
P2R reference P2R reference 102376
Maker reference Maker reference GU03013800

WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800

More information

Quantity required : 2

GU92787006 - ECROU

15
P2R reference P2R reference 132563
Maker reference Maker reference GU92787006

GU92787006-NUT

More information

Quantity required : 2

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

16
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 2

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

17
P2R reference P2R reference 72294
Maker reference Maker reference AP8221023

BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023

More information

Quantity required : 2

AP8144038 - TUYAU ESSENCE 6X10

18
P2R reference P2R reference 71740
Maker reference Maker reference AP8144038

AP8144038-FUEL HOSE 6X10

More information

Quantity required : 2

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

19
P2R reference P2R reference 71155
Maker reference Maker reference AP8101595

CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595

More information

Quantity required : 4

CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876

20
P2R reference P2R reference 71419
Maker reference Maker reference AP8120876

CAP DE VIDANGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120876

More information

Quantity required : 2

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

21
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 2
