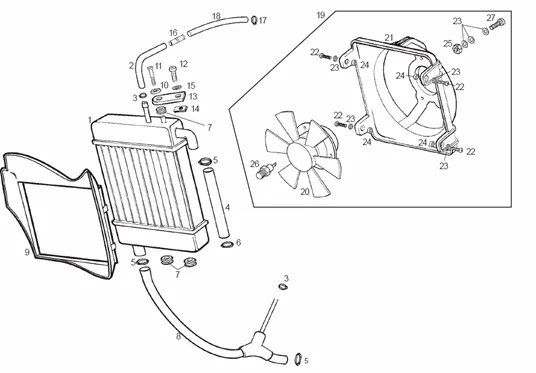

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	195277
	Maker reference	00G03801011

00G03801011 - RADIATEUR

	P2R reference	195278
	Maker reference	00G03801521

00G03801521 - TUBE DRAINAGE RADIATEUR RACCOR

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	195279
	Maker reference	00G03801601

00G03801601 - TUBE BEC ENTREE EAU RADIATEUR

	P2R reference	64107
	Maker reference	00G03801091

00G03801091-CLAMP

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	195280
	Maker reference	00G03800951

00G03800951 - S-ENSEMBLE TUBE CONEXION ARRIV

	P2R reference	195281
	Maker reference	00G03801891

00G03801891 - GRILLE RADIATEUR

	P2R reference	188393
	Maker reference	00D01500551

00D01500551 - CUVETTE

	P2R reference	66338
	Maker reference	319446

SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446

	P2R reference	195282
	Maker reference	00G02200691

00G02200691 - OREILLE SUPERIEURE SUPPORT RAD

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	195283
	Maker reference	00G03800731

00G03800731 - RACCORD

	P2R reference	64809
	Maker reference	00H03700131

CLAMP HOSE (8X10) BOCAL OF BRAKE OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2010 </APRILIA SX, RX, RS-00H03700131

	P2R reference	195284
	Maker reference	00G03800581

00G03800581 - TUBO DRENAJE DPSTO-RACORD PRED

	P2R reference	195285
	Maker reference	00G05700591

00G05700591 - R-CTO.KIT VENTILADOR PREDATOR.

	P2R reference	187610
	Maker reference	00H05700551

00H05700551 - VENTILATEUR

	P2R reference	188711
	Maker reference	00G06800031

00G06800031 - CACHE VENTILATEUR

	P2R reference
	Maker reference	031040

VIS

	P2R reference	187611
	Maker reference	00H06800061

00H06800061 - DOUILLE

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	64106
	Maker reference	00G03800741

SONDE DECLANCHEMENT DE VENTILATEUR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2009/DERBI SENDA 2000 < 2010/APRILIA SX, RX 2006 > 2009-00G03800741
