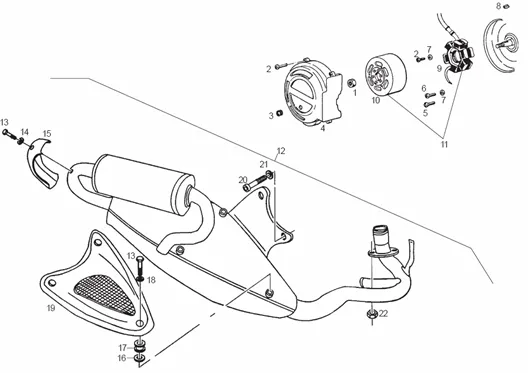

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	66210
	Maker reference	289005

NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005

	P2R reference	65399
	Maker reference	0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

	P2R reference	65828
	Maker reference	197551

197551-BUFFER

	P2R reference	68675
	Maker reference	827517

COVER IGNITION OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O-827517

	P2R reference	127167
	Maker reference	1A003109

SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109

	P2R reference	65383
	Maker reference	0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

	P2R reference	63840
	Maker reference	0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

	P2R reference	63721
	Maker reference	0002675

CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267

	P2R reference	67861
	Maker reference	639865

STATOR SCOOT OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-639865

	P2R reference	67303
	Maker reference	584526

ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526

	P2R reference	67214
	Maker reference	58136R

IGNITION OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, PRIMAVERA 2T, SPRINT 2T, VESPA-S 2T/APRILIA 50 SR MOTARD 2T, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/-58136R

	P2R reference	195274
	Maker reference	00G03456601

00G03456601 - CTO.TUBO ESC-SIL.GP1 CANADA

	P2R reference	195275
	Maker reference	00G03454601

00G03454601 - SCTO.TUBO ESC-SIL.GP1 USA

	P2R reference	195276
	Maker reference	00G03447601

00G03447601 - SCTO.TUBO ESC-SIL.PRED.GP1WVTA

	P2R reference	66440
	Maker reference	433800

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800

	P2R reference	195161
	Maker reference	827193

827193 - RONDELLE

	P2R reference	68693
	Maker reference	827776

827776-PROTECTOR

	P2R reference	68585
	Maker reference	826117

WASHER SPACER PROTECTOR EXHAUST OEM PIAGGIO APRILIA SRV 850 201 > 2014, SR 50 2018/GILERA DNA, RUNNER, STALKER, GP 800/PIAGGIO FLY, NRG, TYPHOON, ZIP-826117

	P2R reference	66779
	Maker reference	488045

SPACER MOUNTING PLATE D'ECHAPPEMENT OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300-488045

	P2R reference	68586
	Maker reference	826118

WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118

	P2R reference	68704
	Maker reference	827845

SILENCER PROTECTION "PIAGGIO GENUINE PART" 50 NRG/GILERA 50 RUNNER -827845

	P2R reference	63596
	Maker reference	000000310805

WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080
