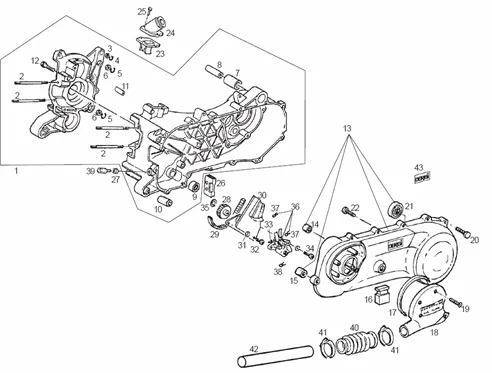

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	73136
	Maker reference	CM1273235

CM1273235-CASING

	P2R reference	70652
	Maker reference	1A003633R

STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R

	P2R reference	65453
	Maker reference	0200065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006

	P2R reference	66181
	Maker reference	287223

WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223

	P2R reference	65698
	Maker reference	113533

WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533

	P2R reference	65455
	Maker reference	0200085

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

	P2R reference	66066
	Maker reference	267823

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823

	P2R reference	66054
	Maker reference	266625

SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625

	P2R reference	66469
	Maker reference	4352035

GASKET ETANCHEITE WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-4352035

	P2R reference	66056
	Maker reference	266773

RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773

	P2R reference	72696
	Maker reference	B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

	P2R reference	72769
	Maker reference	B017632

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

	P2R reference	68756
	Maker reference	8284535

COVER DE TRANSMISSION OEM PIAGGIO 50 2T TYPHOON 2006 > 2010, NRG 2006 >, VESPA PRIMAVERA 2013 >, SPRINT 2014 >/GILERA 50 RUNNER 2000 >/APRILIA 50 SR H2O 2004 >, MOJITO 2004 >-8284535

	P2R reference	66167
	Maker reference	286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

	P2R reference	66417
	Maker reference	431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

	P2R reference	66537
	Maker reference	463872

BUFFER STAND OEM PIAGGIO COMMON A LA RANGE-463872

	P2R reference	66618
	Maker reference	482432

GASKET COVER DE VARIATOR OEM 50 2T COMMON A LA RANGE 2003 > 2017-482432

	P2R reference	66617
	Maker reference	482404

COVER VENTILATION CASING DE TRANSMISSION OEM PIAGGIO 50 NRG/GILERA 50 RUNNER-482404

	P2R reference	66471
	Maker reference	435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

	P2R reference	66367
	Maker reference	414838

SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838

	P2R reference	68524
	Maker reference	82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

	P2R reference	66376
	Maker reference	430264

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264

	P2R reference	68692
	Maker reference	82775R

CLAPET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (N- FRAME CONSEILLE)-82775R

	P2R reference	152746
	Maker reference	1A008824

FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP, VESPA 50 LX, PRIMAVERA, VESPA-S, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SPORT-CITY, SR-1A008824

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	66178
	Maker reference	287021

GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-287021

	P2R reference	65461
	Maker reference	0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

	P2R reference	66217
	Maker reference	289262

GEAR OF PUMP A OIL OEM PIAGGIO GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG ENGINE H2O-289262

	P2R reference	66161
	Maker reference	286162

BELT OIL PUMP OEM PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-286162

	P2R reference	66162
	Maker reference	286163

PLATE BRACKET OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-286163

	P2R reference	63840
	Maker reference	0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

	P2R reference	65399
	Maker reference	0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

	P2R reference	65695
	Maker reference	104296

104296-SPRING

	P2R reference	65383
	Maker reference	0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

	P2R reference	66179
	Maker reference	287073

WASHER DE BUTEE SPROCKET OIL PUMP OEM PIAGGIO COMMON A TOUTE LA RANGE 50 CC 2T 287073

	P2R reference	68580
	Maker reference	82605R

PUMP OIL OEM PIAGGIO 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000 >/APRILIA 50 SR H2O 2003 >/GILERA 50 STALKER, RUNNER, DNA 2000 >-82605R

	P2R reference	66705
	Maker reference	486149

CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149

	P2R reference	66220
	Maker reference	289309

289309 - COLLIER

	P2R reference	65745
	Maker reference	146197

SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197

	P2R reference	194842
	Maker reference	00G03600601

00G03600601 - FUELLE ENTR.AIRE VARIAD.GP1

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	194843
	Maker reference	00G03600501

00G03600501 - TUBO RIGIDO ENT.VARIAD.GP1

	P2R reference	195270
	Maker reference	00G04407991

00G04407991 - ADHESIF
