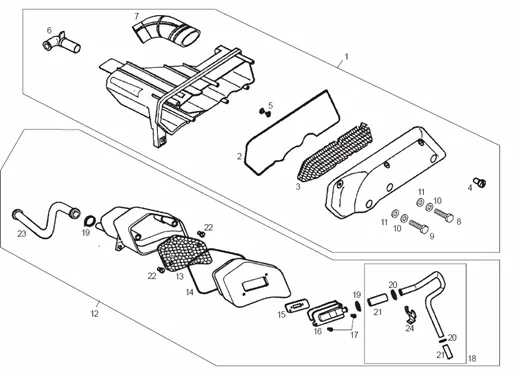

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	168759
	Maker reference	1A017938

HOUSING AIR FILTER SCOOT OEM PIAGGIO 50 2T ZIP, NRG, TYPHOON, LIBERTY, FLY, VESPA LX/GILERA 50 STALKER, RUNNER, DNA/APRILIA 50 SR-1A017938

	P2R reference	66746
	Maker reference	487718

GASKET OF HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE 50 CC 2T 2004 >-487718

	P2R reference	157075
	Maker reference	1A0122830P

ELEMENT/MOUSSE AIR FILTER (PREMIUM) SCOOT OEM PIAGGIO 50 ZIP 2T 2000 >, VESPA LX 2T 2005 >, LYBERTY 2T 2005 >, NRG 2005 >/GILERA 50 DNA, RUNNER 2005 >, STALKER 2001 >/APRILIA 50 SR 2012 >-1A0122830P

	P2R reference	66025
	Maker reference	258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

	P2R reference	68888
	Maker reference	830056

BUSH EN T (D5) MOLETEE CENTRAGE BOX A AIR OEM PIAGGIO COMMON A LA RANGE-830056

	P2R reference	68867
	Maker reference	829715

SLEEVE ASPIRATION DE HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE-829715

	P2R reference	66743
	Maker reference	487592

SLEEVE AIR FILTER SCOOT OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, FLY, VESPA LX, PRIMAVERA, VESPA SPRINT 2T/GILERA 50 RUNNER, STALKER 2T/APRILIA 50 SR H2O, SR SUPER MOTARD 2T-487592

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	68923
	Maker reference	830504

830504 - BOITE

	P2R reference	66715
	Maker reference	486942

AIR FILTER HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-486942

	P2R reference	66716
	Maker reference	486943

GASKET HOUSING AIR OEM PIAGGIO 50 2T COMMON A LA RANGE-486943

	P2R reference	68695
	Maker reference	82778R

CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R

	P2R reference	68657
	Maker reference	827209

827209-COVER

	P2R reference	66559
	Maker reference	478533

SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533

	P2R reference	195273
	Maker reference	00G04201711

00G04201711 - CTO.TUBO AIRE SECUND.PR.GP1 PG

	P2R reference	72867
	Maker reference	CM001905

CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905

	P2R reference	68672
	Maker reference	827444

CLAMP HOUSING RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827444

	P2R reference	68671
	Maker reference	827443

SLEEVE DE HOSE RECYCLAGE DES THROTTLE OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD-827443

	P2R reference	65385
	Maker reference	0155975

SCREW CRUCIFORME (5X25) OEM PIAGGIO COMMON A LA RANGE-015597

	P2R reference	68656
	Maker reference	827208

TUBE AIR SECONDAIRE OEM PIAGGIO 50 2T FLY, LIBERTY, TYPHOON, ZIP, PRIMAVERA-827208

	P2R reference	68696
	Maker reference	827794

827794-GUIDE-CABLE
