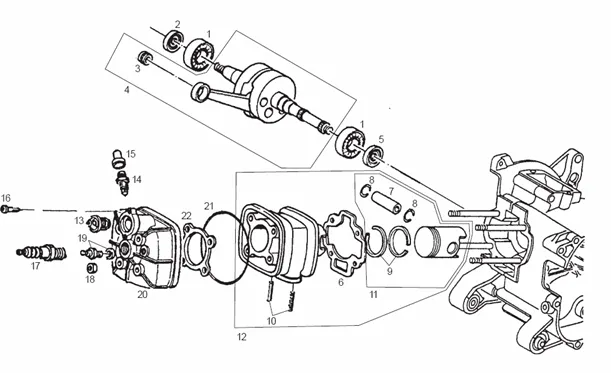

Vehicle Exploded View - DERBI GP1 50 E1 2003 (EMEA NAFTA)

	P2R reference	66397
	Maker reference	431125

BEARING (20X52X12) VILEBREQUIN OEM PIAGGIO 50 TYPHOON 1995 >, FLY 2T 2005 >, LIBERTY 1998 >, NRG 1998 >, VESPA LX 2T 2005 > ZIP 2000 >/GILERA 50 STALKER 1997 >, RUNNER 1997 >-431125

	P2R reference	66614
	Maker reference	482315

OIL SEAL (18X28X7) VILEBREQUIN (COTE IGNITION) OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, LX, PRIMAVERA, SPRINT/RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-482315

	P2R reference	66982
	Maker reference	500502

CAGE AIGUILLE OEM (BLUE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500502

	P2R reference	66983
	Maker reference	500503

CAGE AIGUILLE OEM (BLANCHE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500503

	P2R reference	66981
	Maker reference	500501

CAGE A AIGUILLES OEM (AUBURN) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500501

	P2R reference	66984
	Maker reference	500504

CAGE AIGUILLE OEM (JAUNE) PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T/APRILIA 50 SR MOTARD 2T/GILERA 50 RUNNER/VESPA LX 2T, PRIMAVERA 2T-500504

	P2R reference	66413
	Maker reference	4316255

EMBIELLAGE/VILEBREQUIN SCOOT OEM PIAGGIO 50 2T ZIP 1997 >, TYPHOON 1996 >, LIBERTY 1998 >, FLY 2005 >, NRG 1998 >, VESPA LX 2005 >/GILERA 50 STALKER 1997 >, RUNNER/APRILIA 50 SR MOTARD 2012 >-4316255

	P2R reference	66613
	Maker reference	482314

OIL SEAL (19X30X6. 5) VILEBREQUIN (COTE VARIATEUR) OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, LX, PRIMAVERA, SPRINT/RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-482314

	P2R reference	68662
	Maker reference	827301

CYLINDER BASE GASKET DE CYLINDER (0, 4MM) OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA LIQUIDE-827301

	P2R reference	68663
	Maker reference	827303

CYLINDER BASE GASKET DE CYLINDER (0, 6MM) OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA LIQUIDE-827303

	P2R reference	68861
	Maker reference	829633

CYLINDER BASE GASKET DE CYLINDER 0. 8 OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA ENGINE LIQUIDE-829633

	P2R reference	65982
	Maker reference	239404

SHAFT OF PISTON OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-239404

	P2R reference	65983
	Maker reference	239455

CIRCLIPS SHAFT OF PISTON OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTEUR 50 CC 2T-239455

	P2R reference	68541
	Maker reference	825416

PISTON RING SCOOTER OEM PIAGGIO 50 TYPHOON 1995 >, NRG 1998 >, ZIP 2000 >, VESPA LX 2005 >, LIBERTY 1998 >, FLY 2T 2005 >/APRILIA 50 SR 2010 >/GILERA 50 STALKER 1997 >, RUNNER 1997 > (VENDU A L UNITE)-825416

	P2R reference	65981
	Maker reference	239397

STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397

	P2R reference	66755
	Maker reference	4878020003

PISTON OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2T 2005 >, LIBERTY 2T 1998 >, NRG 1998 >, VESPA LX 2T, VESPA-S 2T 2007 >/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012 > CAT-3 (O)-4878020003

	P2R reference	66753
	Maker reference	4878020001

PISTON SCOOT OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2T 2005 >, LIBERTY 2T 1998 >, NRG 1998 >, VESPA LX 2T, VESPA-S 2T 2007 >/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012 > CAT-1 (M)-4878020001

	P2R reference	66754
	Maker reference	4878020002

PISTON OEM PIAGGIO 50 ZIP 1995 >, TYPHOON 1995 >, NRG 1997 >, LIBERTY 2000 >, FLY 2005 >, VESPA LX 2005 >/GILERA 50 RUNNER 1997 >, STALKER 1997 >/APRILIA 50 SR 2003 > CAT-2 (N)-4878020002

	P2R reference	68521
	Maker reference	825185

825185 - GR.PISTON 2M EX 484415

	P2R reference	166942
	Maker reference	825182

825182 - GR.PISTON 1ERE MAJ TYPHOON EX 484409

	P2R reference	66756
	Maker reference	4878020004

PISTON OEM PIAGGIO 50 ZIP 1995 >, TYPHOON 1995 >, NRG 1997 >, LIBERTY 2000 >, FLY 2005 >, VESPA LX 2005 >/GILERA 50 RUNNER 1997 >, STALKER 1997 >/APRILIA 50 SR 2003 > CAT-4 (P)-4878020004

	P2R reference	69071
	Maker reference	833598

CYLINDER PISTON OEM PIAGGIO 50 NRG 2005 > 2017, ZIP SP 2006 >/RUNNER 50 2005 >/APRILIA 50 SR H2O 2003 > LIQUIDE-833598

	P2R reference	66631
	Maker reference	483395

CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395

	P2R reference	66370
	Maker reference	430045

SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045

	P2R reference	65657
	Maker reference	0634355

063435-CAPUCHON

	P2R reference	66015
	Maker reference	256212

256212 - VIS

	P2R reference	66518
	Maker reference	438031

SPARK PLUG CHAMPION RN1C OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC COOLING FLUID-438031

	P2R reference	66187
	Maker reference	288245

NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245

	P2R reference	68590
	Maker reference	82622R

SONDE TEMPERATURE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-82622R

	P2R reference	68604
	Maker reference	8264901
	Replaced by référence 223231

CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 NRG, ZIP SP 2000>/GILERA 50 RUNNER, DNA 2000>/APRILIA 50 SR H2O 2004> -8264901

	P2R reference	66628
	Maker reference	482988

O-RING EXTERIEUR DE CYLINDER HEAD (NOUVELLE CYLINDER HEAD) OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 DNA, RUNNER/APRILIA 50 H2O-482988

	P2R reference	66189
	Maker reference	288289

CYLINDER HEAD GASKET INNER Ø40 OEM PIAGGIO 50 NRG, ZIP RST 1998 >/GILERA 50 RUNNER, DNA 1998 > LIQUIDE-288289
