Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

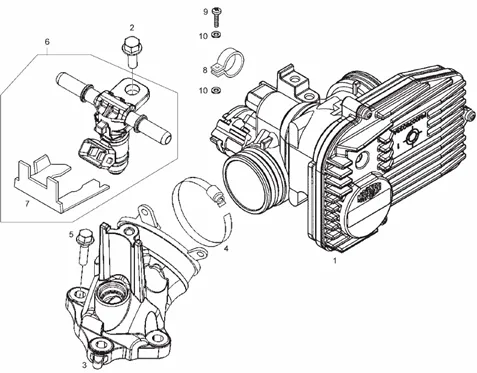

Moteur : 33 INJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_33.png)
1 |
CM078207 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
2 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
||||||
|
3 |
877931-FITTING D'ADMISS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
4 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
5 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/5/img/67815.jpg)
6 |
INJECTEUR OEM PIAGGIO 250 MP3 2006 >, X8 2004 > 2006, BEVERLY 2006 >, VESPA GTS 2006 >/GILERA 250 NEXUS 2006 >/APRILIA 250 ATLANTIC 2006 >, SPORT-CITY 2006 >, SCARABEO 2006 >-6389495 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
638792-COLLIERS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/1/img/66471.jpg)
9 |
SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295 More informationQuantity required : 1 |
||||||
|
10 |
00031105000-WASHER PLATE M5 DIN125 More informationQuantity required : 1 |
