Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

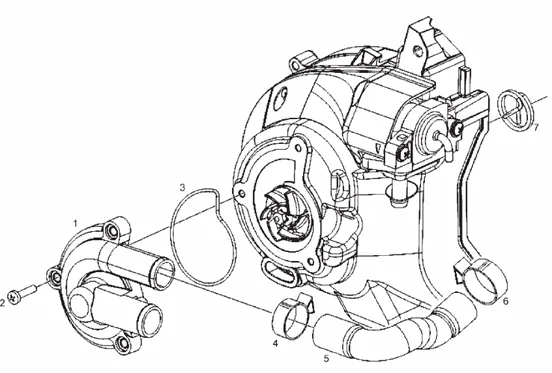

Moteur : 28 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_28.png)
1 |
846734 - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
2 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
3 |
O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
4 |
CLAMP HOSE COOLING (30MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM001922 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/6/img/70686.jpg)
5 |
HOSE/HOSE WATER PUMP CYLINDER OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-878626 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
6 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
7 |
SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390 More informationQuantity required : 1 |
|||||||||
