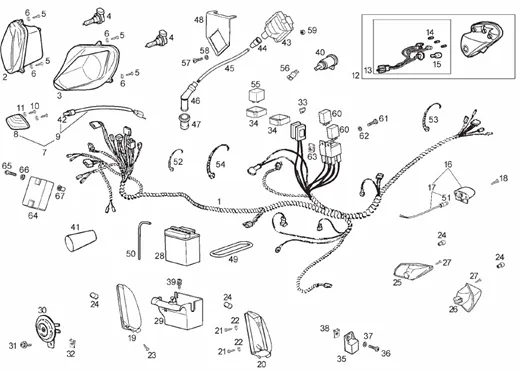

Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)

	P2R reference	195076
	Maker reference	863808

863808 - CTO.INSTAL.ELECTR.GP1 250 LS

	P2R reference	63972
	Maker reference	00G01026011

00G01026011-LAMP UNIT DR.

	P2R reference	194957
	Maker reference	00H01023011

00H01023011-LAMP UNIT RIGHT

	P2R reference	194958
	Maker reference	00H01024011

00H01024011-LAMP UNIT LEFT

	P2R reference	63973
	Maker reference	00G01027011

00G01027011 - OPTIQUE GA.

	P2R reference	64381
	Maker reference	00H01004131

AMPOULE/LAMPE 12V 35W H8 OEM PIAGGIO COMMON A LA RANGE-00H01004131

	P2R reference	194959
	Maker reference	00H01002131

00H01002131 - AMPOULE

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	65005
	Maker reference	00H05704471

00H05704471-LUMIERE DE POSITION OEM GILERA SC 125 2006

	P2R reference	65001
	Maker reference	00H05701471

00H05701471 - FEU

	P2R reference	65004
	Maker reference	00H05703471

00H05703471-TUBE PHARES

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	64387
	Maker reference	00H01011321

TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01011321

	P2R reference	64380
	Maker reference	00H01003951

00H01003951-HARNESS LAMP REAR

	P2R reference	64371
	Maker reference	00H01001371

00H01001371 - AMPOULE 12V.2,31W

	P2R reference	48170
	Maker reference	AP8127490

BULB W16W 12V 16W "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC 2003>2008, 50 RS 2006>2010 -AP8127490

	P2R reference	64135
	Maker reference	00G05701471

00G05701471-TUBE PHARES

	P2R reference	64029
	Maker reference	00G02300581

00G02300581-LAMP REGISTRE

	P2R reference	63676
	Maker reference	000110314015

00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H

	P2R reference	194960
	Maker reference	00G01706021

00G01706021 - CLIGNOTANT

	P2R reference	194961
	Maker reference	00G01706311

00G01706311 - CLIGNOTANT

	P2R reference	71603
	Maker reference	AP8127489

AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489

	P2R reference	194962
	Maker reference	00G01700531

00G01700531 - CLIGNOTANT

	P2R reference	194963
	Maker reference	00G01700541

00G01700541 - CLIGNOTANT

	P2R reference	194964
	Maker reference	00G03304401

00G03304401 - BATERIA 12V.12A GP1 250CC

	P2R reference	194965
	Maker reference	863711

863711 - CAJA BATERIA GP1 125 LS

	P2R reference	72984
	Maker reference	CM071803

AVERTISSEUR/HORN OEM PIAGGIO COMMON A LA RANGE-CM071803

	P2R reference	63923
	Maker reference	00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	64377
	Maker reference	00H01002911

00H01002911 - FUSIBLE

	P2R reference	195077
	Maker reference	864566

864566 - FUSIBLE 30 AMP

	P2R reference	70898
	Maker reference	942577

942577-BRACKET RELAIS

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	187989
	Maker reference	00D05900031

00D05900031 - VIS

	P2R reference	187337
	Maker reference	00G05700641

00G05700641 - CONNECTEUR ALIMENTATION TELEPH

	P2R reference	64684
	Maker reference	00H02300961

PROTECTOR DE CONNEXIONS ON HARNESS OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2011 >-00H02300961

	P2R reference	64379
	Maker reference	00H01003131

00H01003131-AMPOULE 12V-5W

	P2R reference	67207
	Maker reference	58120R

BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9, GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC-58120R

	P2R reference	65661
	Maker reference	0716715

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-071671

	P2R reference	195078
	Maker reference	863902

863902 - CTO.CABLE BOBINA DE ALTA GP1 250 LS

	P2R reference	66266
	Maker reference	293845

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-293845

	P2R reference	66508
	Maker reference	436919

CAPUCHON ISOLANT ANTI PARASITE OEM PIAGGIO COMMON A LA RANGE-436919

	P2R reference	195079
	Maker reference	863842

863842 - CARTELA FIJ.BOBINA GP1 250 LS

	P2R reference	64016
	Maker reference	00G01802361

00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE

	P2R reference	194966
	Maker reference	00H04402601

00H04402601 - TUBO DESVAP.BATERIA GPR 04

	P2R reference	64379
	Maker reference	00H01003131

00H01003131-AMPOULE 12V-5W

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	195080
	Maker reference	861250

861250 - CTO.CENTRAL INTTES.

	P2R reference	195081
	Maker reference	00G02301991

00G02301991 - R-CTO.DIODOS INSTAL.ELECT.GP1

	P2R reference	195082
	Maker reference	863904

863904 - TOR.C/RED CRUZ 3MX25 D7985 ZNB

	P2R reference	195083
	Maker reference	863905

863905 - ARAN.ESTR.D3 DIN6797-A ZNB

	P2R reference	189105
	Maker reference	00N05700711

00N05700711-RELE FARO GP130

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	67823
	Maker reference	639110

REGULATEUR DE TENSION MAXISCCOTER OEM PIAGGIO 250-300-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO-639110

	P2R reference	66340
	Maker reference	323990

SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	64895
	Maker reference	00H04400711

00H04400711 - ECROU
