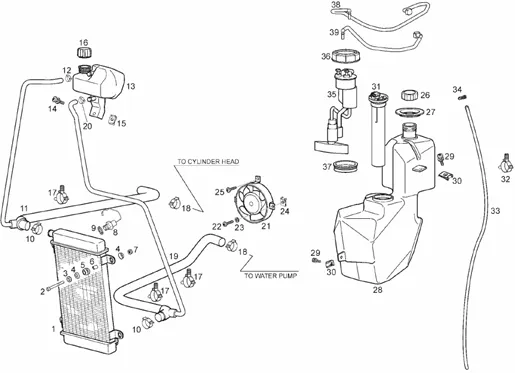

Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)

	P2R reference	194874
	Maker reference	00G03805011

00G03805011-CTO. RADIADOR GP1 250CC 05 E2

	P2R reference	71828
	Maker reference	AP8150165

SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8150165

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63882
	Maker reference	00D01500471

SPACER DE GUIDE-FIL OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX-00D01500471

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	67310
	Maker reference	584715

SONDE DE TEMPERATURE WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-584715

	P2R reference	65768
	Maker reference	168077

GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077

	P2R reference	154595
	Maker reference	864808

864808-GASKET

	P2R reference	194875
	Maker reference	00D03400521

00D03400521-CLAMP HOSE

	P2R reference	195062
	Maker reference	863813

863813 - TUBO CULATA RADIADOR GP1 250 LS

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	194877
	Maker reference	00G03803501

00G03803501 - DEPOSITO EXPANSOR GP1 250CC

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	67743
	Maker reference	623673

CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673

	P2R reference	194878
	Maker reference	00G03802091

00G03802091-ABRAZ. MANGU. AGUA D25, 4 GP1 250

	P2R reference	194875
	Maker reference	00D03400521

00D03400521-CLAMP HOSE

	P2R reference	194879
	Maker reference	00G03802041

00G03802041 - TUBO RADIAD.-MOTOR GP1 250CC

	P2R reference	194880
	Maker reference	00H03806091

00H03806091 - ABRAZ.NORMA COBRA 16/8 W4

	P2R reference	194881
	Maker reference	00G05700551

00G05700551 - CTO.ELECTROVENTIL.GP1 250CC

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	194882
	Maker reference	00G00402131

00G00402131-CAP RESERV. FUEL V. B

	P2R reference	187313
	Maker reference	00G06200051

00G06200051-GASKET

	P2R reference	195063
	Maker reference	863762

863762 - DPSTO.GASOLINA GP1 250 LS

	P2R reference	64151
	Maker reference	00G06800021

SCREW CRUCIFORME (6X20) OEM PIAGGIO COMMON A LA RANGE-00G06800021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	73019
	Maker reference	CM086807

JAUGE A FUEL OEM PIAGGIO 125-250 X9 1998 > 2005, 125X8 1998 > 2005-CM086807

	P2R reference	194878
	Maker reference	00G03802091

00G03802091-ABRAZ. MANGU. AGUA D25, 4 GP1 250

	P2R reference	194889
	Maker reference	00G03702461

00G03702461 - TUBO DRENAJE BOCA DPSTO.GP1 04

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	67825
	Maker reference	639150

639150 - POMPE ELECTRIQUE

	P2R reference	67133
	Maker reference	576546

NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546

	P2R reference	127181
	Maker reference	656003

GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003

	P2R reference	195064
	Maker reference	863796

863796 - CTO.TUBO ALIMENTAC.GASOL.GP1 250 LS

	P2R reference	195065
	Maker reference	863798

863798 - CTO.TUBO RETORNO GASOL.GP1 250 LS
