Vehicle Exploded View - DERBI GP1 250 2ver E3 2007 (APAC EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

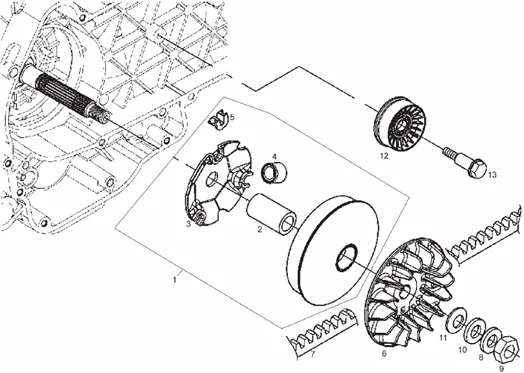

Moteur : 25 POULIE 2AIRE COMPLÈTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1149/GP1_250_2ver_E3_2007_(APAC_EMEA)_25.png)
1 |
PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250 MAXI SCOOTER-CM144407 More informationQuantity required : 1 |
|||||||||
|
2 |
483889-SPACER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/3/img/69223.jpg)
3 |
FLASQUE A ROULEAUX DE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842204 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/8/img/69248.jpg)
4 |
GALET/ROLLER MAXI SCOOTER OEM PIAGGIO (21X17X11. 2G) 250 BEVERLY, MP3, X7, X8, X-EVO, VESPA GTS/APRILIA 250 ATLANTIC/GILERA 250 NEXUS (SOLD INDIVIDUALLY)-842870 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/5/5/img/69255.jpg)
5 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 250-300 MP3 2006 >, X7, VESPA GTS 2005 >, BEVERLY, 250 X8, X9, X-EVO/GILERA 250-300 NEXUS/APRILIA 250-300 ATLANTIC, SCARABEO-843028 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/6/img/69136.jpg)
6 |
JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE 250-300 MAXI SCOOTER-840193 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/3/img/68843.jpg)
7 |
BELT "PIAGGIO GENUINE PART" 250 X9-EVO, MP3, X7, X8, X-EVO, VESPA GTS, 300 MP3, VESPA GTS/APRILIA 300 SR-MAX/GILERA 250-300 NEXUS -82941R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
8 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
9 |
NUT (M12X1. 25) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-486324 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/3/img/69153.jpg)
10 |
WASHER PLATE (12, 1X36X2) OEM PIAGGIO COMMON A LA RANGE-840533 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/3/img/70743.jpg)
11 |
WASHER ELASTIC DE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-880950 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/9/4/img/69094.jpg)
12 |
PULLEY DE BELT OEM PIAGGIO 250-300 MP3, X7, VESPA GTS, BEVERLY, 250 X8, X9, 125 X10/APRILIA 125-300 ATLANTIC/GILERA 250-300 NEXUS-833989 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/6/img/68736.jpg)
13 |
SCREW PULLEY DE BELT OEM PIAGGIO COMMON A LA RANGE 200-250-300-828217 More informationQuantity required : 1 |
|||||||||
