Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

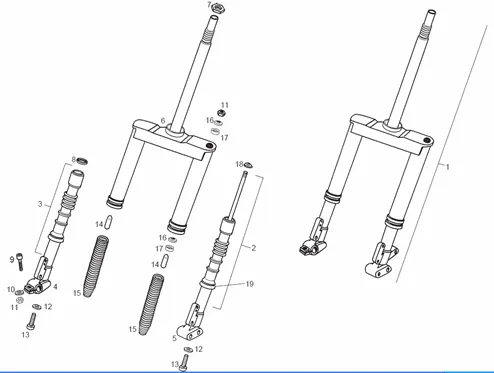

Suspensions - roues : 2 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1146/GP_Series_O2_Export_2001_(EMEA)_2.png)
1 |
00G00203002 - ENS.FOURCHE DIRECTRICE More informationQuantity required : 1 |
||||||
|
2 |
00G02001941 - R-ENSEMBLE BARRE GAUCHE PADDOC More informationQuantity required : 1 |
||||||
|
3 |
00G02001871 - R-ENSEMBLE BARRE DROITE More informationQuantity required : 1 |
||||||
|
4 |
00G02001831 - SUPP.JAMBRE DE FOURCHE DROITE More informationQuantity required : 1 |
||||||
|
5 |
00G02001821 - SUPP.JAMBRE DE FOURCHE GAUCHE More informationQuantity required : 1 |
||||||
|
6 |
00G00202012 - SOUS-ENSEMBLE TIGE PLATINE PR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/2/4/img/63924.jpg)
7 |
NUT UPPER DE FORK OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00G00200112 More informationQuantity required : 1 |
||||||
|
8 |
00G02000951 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
9 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-323990 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
10 |
WASHER MOUNTING DE CYLINDER HEAD OEM PIAGGIO GILERA 50 SMT, RCR, GSM 1998 > 2003/DERBI 50 SENDA 2005 >-00003125280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
00000004820-BOLT HEAD HEX. 8M125X20 More informationQuantity required : 1 |
||||||
|
14 |
00G02001621 - BUTEE FOURCHE More informationQuantity required : 1 |
||||||
|
15 |
00G00203171 - R-RESSORT FOURCHE PADDOCK More informationQuantity required : 1 |
||||||
|
16 |
00G00201441 - CUVETTE More informationQuantity required : 1 |
||||||
|
17 |
00G02000811 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
18 |
00G02000971 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
00G00202231 - CACHE-POUSSIERE FOURCHE More informationQuantity required : 1 |
