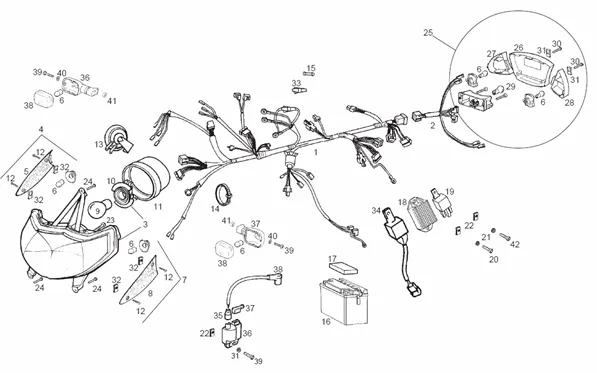

Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)

	P2R reference	194752
	Maker reference	00G01030301

00G01030301 - CTO.INSTAL.ELECT.PRED.O2 PG

	P2R reference	194753
	Maker reference	00G05702051

00G05702051 - FAISCEAU PHARE TEMOIN

	P2R reference	194754
	Maker reference	00G01012011

00G01012011 - PHARE DROIT COMPLET PREDATOR

	P2R reference	194755
	Maker reference	00G01703021

00G01703021-ENS. FRONT RIGHT INDICATOR

	P2R reference	194755
	Maker reference	00G01703021

00G01703021-ENS. FRONT RIGHT INDICATOR

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	194756
	Maker reference	00G01703311

00G01703311-ENS. FRONT LEFT INDICATOR

	P2R reference	194757
	Maker reference	00G01703071

00G01703071-R-VERRE INDICATOR FRONT GAUCH

	P2R reference	65942
	Maker reference	219528

AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528

	P2R reference	194758
	Maker reference	00G01003111

00G01003111 - PORTE LAMPES

	P2R reference	194759
	Maker reference	00G05700141

00G05700141 - R-PROTECTEUR PORTE-LAMPE PHARE

	P2R reference	194760
	Maker reference	00G01700091

00G01700091 - BOULON SERRAGE GLACE CLIGNOTAN

	P2R reference	63903
	Maker reference	00F01001311

00F01001311 - ZLAXON COMPLET

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	188330
	Maker reference	00F01010911

00F01010911 - FUSIBLE 4 AH.SCO-50.ITAL./89.

	P2R reference	190628
	Maker reference	00G03300401

00G03300401 - BATTERIE.12V. 3AH.

	P2R reference	194761
	Maker reference	00G06300771

00G06300771 - BUTEE RESERVOIR

	P2R reference	67191
	Maker reference	58096R

REGULATEUR DE TENSION SCOOT OEM PIAGGIO 50 ZIP 2009 >, TYPHOON 2006 >, FLY 2005 >, LIBERTY 2006 >, NRG POWER 2005 > VESPA LX 2005 >, VESPA-S 2007 >/GILERA 50 STALKER 2005 >, RUNNER 2005 >-58096R

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	194762
	Maker reference	00G01002101

00G01002101 - R- VIS REGLAGE PHARE PREDATOR

	P2R reference	194763
	Maker reference	00G01006321

00G01006321 - PHARE PILOTE COMPLET

	P2R reference	194764
	Maker reference	00G01003341

00G01003341-GLACE HEADLAMP LAMP REAR HUNTER

	P2R reference	194765
	Maker reference	00G01703891

00G01703891-GLACE REAR RIGHT INDICATOR

	P2R reference	194766
	Maker reference	00G01703901

00G01703901-GLACE INDICATOR REAR GAUCH

	P2R reference	63957
	Maker reference	00G01001571

SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	194767
	Maker reference	00F01700051

00F01700051 - ECROU

	P2R reference	64030
	Maker reference	00G02300811

00G02300811-DOOR-FUSIBLE

	P2R reference	64997
	Maker reference	00H05700481

CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481

	P2R reference	65966
	Maker reference	231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

	P2R reference	187413
	Maker reference	00G03310171

00G03310171 - BOBINE

	P2R reference	66010
	Maker reference	255256

CAPUCHON ISOLANT ORIGNE PIAGGIO COMMON A LA RANGE-255256

	P2R reference	68522
	Maker reference	825186

ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-825186

	P2R reference	63568
	Maker reference	000000045125

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512
